Install bottom section of firewall - AR62.25-P-1100-03P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1001-13A	Blind rivet 6.4 14	A 003 990 35 97

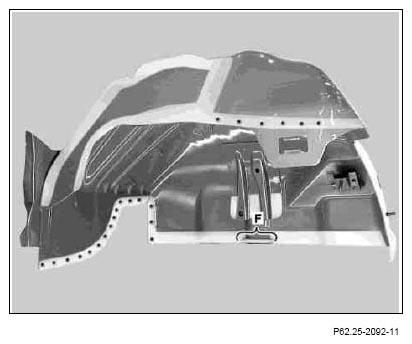

Apply MB body sealant to firewall (area F).
Shown on model 203.0

Fig 1: Identifying MB Body Sealant Application Area On Firewall
Courtesy of MERCEDES-BENZ USA
Install firewall and wheelhouse.
Fasten wheelhouse to straightening tool.

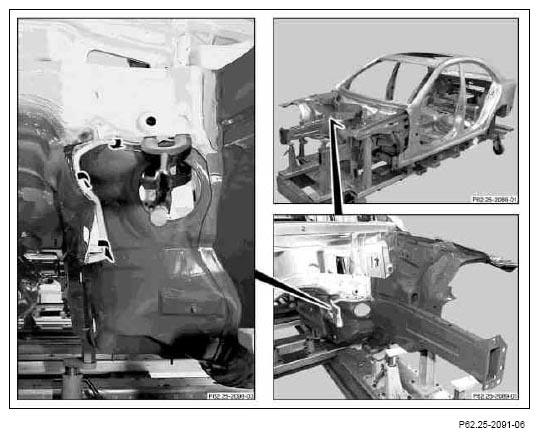

Fit firewall to wheelhouse and body and fasten with clamps.
Position spot welding flange bent open on new part.
Shown on model 203.0

Fig 2: Fitting Firewall To Wheelhouse And Body
Courtesy of MERCEDES-BENZ USA

Fig 3: Locating Drill Holes & Welding Areas
Courtesy of MERCEDES-BENZ USA

Shown on model 203.0
Drill dia. 6.5 mm rivet hole (area G).
Deburr rivet hole from bottom (area G).
Rivet bottom firewall with Polygrip flat head rivets, dia. 6.4 x 14 mm (area G).

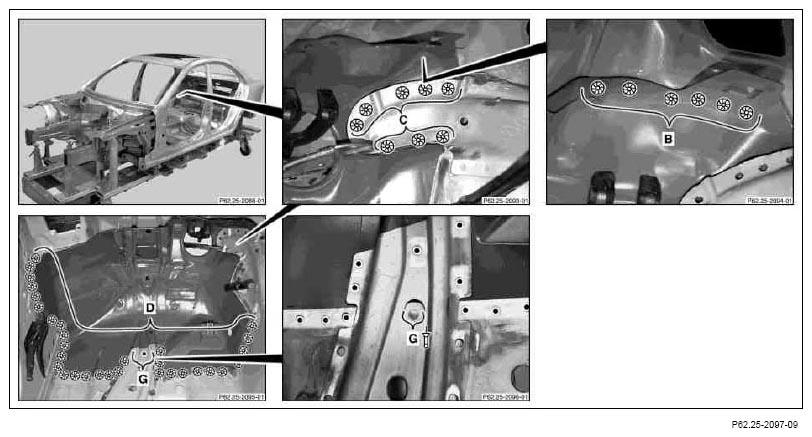

Weld in bottom section of firewall with (areas B, C and D).

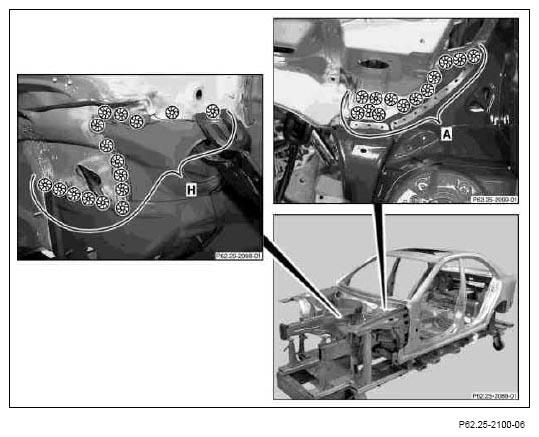

Weld in bottom section of fire wall with (areas A and H).
