Cut out wheel well on engine compartment side - AR62.20-P-1200-03P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

Work procedure shown on model 203.0.

Expose spot welds (areas F and G).
Cut out spot welds with spot weld milling cutter (areas F and G).

Fig 1: Identifying Wheel Well Engine Compartment Side Spot Welds
Courtesy of MERCEDES-BENZ USA

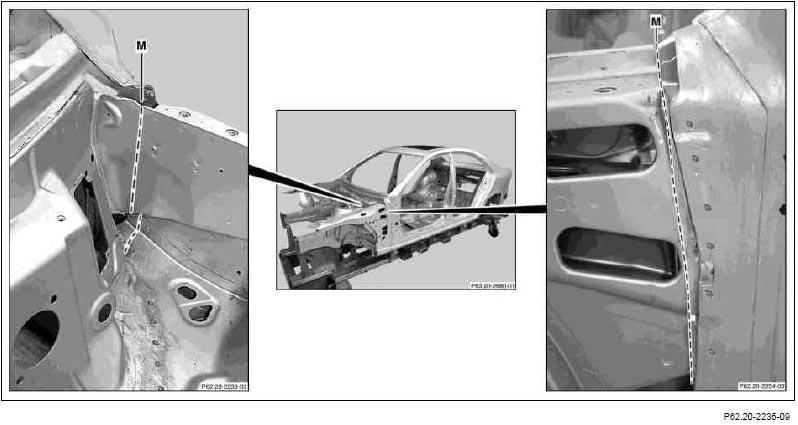

Fig 2: Identifying Wheel Well Engine Compartment Side Separation Area
Courtesy of MERCEDES-BENZ USA
Separate wheel well with body saw (area M).
Remove wheel well.

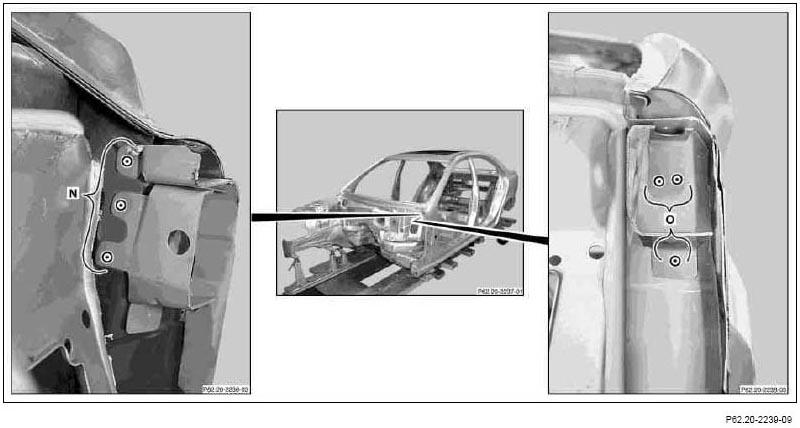

Fig 3: Locating Wheel Well Spot Welds
Courtesy of MERCEDES-BENZ USA
Expose spot welds (areas N and O).
Cut out spot welds with spot weld milling cutter (areas N and O).
