Remove/install rear rubber bushing for differential mount in rear axle carrier - AR35.10-P-0050P

MODEL 203, 209.3/ 4

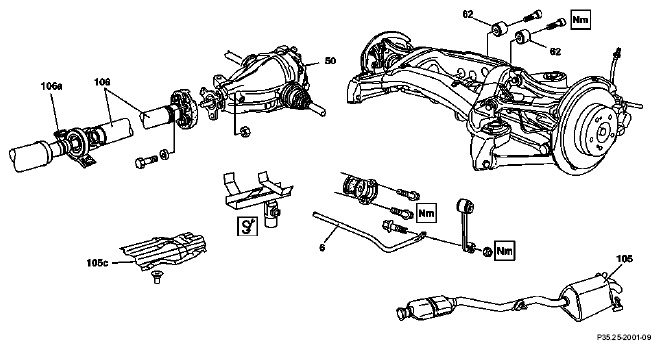

Fig 1: Identifying Rear Rubber Bushing In Rear Axle Carrier Remove/Install Components - Model 203, 209.3/ 4

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Installation	Replace self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove wheels
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
2	Remove exhaust system (105) from flange connection	Engine 111.951 in model 203.035/235/735 Engine 111.955 in model 203.045/245/745 Engine 111.981 in model 203.747	AR49.10-P-7000PR
		Engine 112 in model 203, 209 Engine 113.968 in model 209.375/475 Engine 113.987 in model 209.376 up to 23.4.04 Engine 113.987 in model 209.476 Engine 156.982 in model 209.477	AR49.10-P-7000PV
		Engine 611.962 in model 203.004/006/204/206/706 Engine 612.962 in model 203. Engine 612.967 in model 209.316	AR49.10-P-7000PP
		Engine 612.990 in model 203.018/218/718	AR49.10-P-7000PF
		Engine 646 in model 203, 209	AR49.10-P-7000PM
		Engine 113 in model 203.076/276	AR49.10-P-7000AC
		Engine 113.987 in model 209.376 as of 24.4.04 Engine 156.982 in model 209.377
		Engine 271.940 in model 203.042/242/742 Engine 271.940 in model 209.342/442 Engine 271.946 in model 203.046/246/746 Engine 271.948 in model 203.040/240/740 Engine 271.921 in model 203.730 Engine 271.955 in model 209.341/441	AR49.10-P-7000QK
		Engine 271.942 in model 203, 209.3	AR49.10-P-7000QD
		Engine 272 in model 203.052/054/056/087/092/252/254/256/287/292/752/756 Engine 272 in model 209.354/356/454/456 Engine 273 in model 209.372/472	AR49.10-P-7000QB
3	Remove exhaust heat shield (105c)
4	Unscrew retaining bolts from propeller shaft intermediate bearing (106a)		*BA41.40-P-1001-01A
5	Disconnect propeller shaft (106) from flange of rear axle differential (50)	The flexible coupling remains on the propeller shaft.	AR41.10-P-0050-03EA
		Tie propeller shaft as high as possible using wire. If the flexible coupling cannot be removed from the propeller shaft flange: ↓ Release the guide sleeves on	AR41.10-P-0050-09DA
	Drift for loosening fitting sleeves in flex disks.	Models 203, 209	WF58.50-P4110-01A
		Installation: Attach propeller shaft to rear axle center assembly.	AR41.10-P-0050-04EA
			*BA41.10-P-1002-01A
6	Remove torsion bar (6).	Torsion bar connecting rods remain on wheel carriers.	AR32.20-P-0315P
7	Support rear axle differential (50)	Secure against falling.	Figure
8	Unscrew hexagon socket bolt of front center assembly suspension		AR35.10-P-0050-01A
			*BA35.10-P-1003-01A
9	Unscrew hexagon socket bolts of rear center assembly suspension		*BA35.10-P-1004-01A
10	Lower rear axle differential (50)	Do not kink rear axle shafts too much. Lower rear axle center assembly until the rubber mounts are accessible.
11	Remove rear rubber mount of rear axle center assembly suspension		AR35.10-P-0050-02P
12	Install in the reverse order

REAR AXLE CARRIER

Number	Designation		Model 203	Model 209
BA35.10-P-1003-01A	Self-locking nut, front rear axle center assembly to rear axle carrier	Nm	45	43
BA35.10-P-1004-01A	Self-locking bolt, rear axle differential at rear to rear axle carrier	Nm	110	110

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation			Model 203	Model 209
BA41.40-P-1001-01A	Bolt driveshaft center bearing to frame	Bolt with washer	Nm	-	-
		Bolt with collar and self-centering tip	Nm	30	30
		Bolt with collar and without self-centering tip	Nm	-	-

DRIVESHAFT

Number	Designation			Model 203	Model 209
BA41.10-P-1002-01A	Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential.	M10	Nm	40	36
BA41.10-P-1002-01A		M12	Nm	60	58

Fig 2: Identifying Assembly Attachment (140 589 01 62 00)
