Remove/install roll bar - AR91.50-P-2000G

MODELS 170

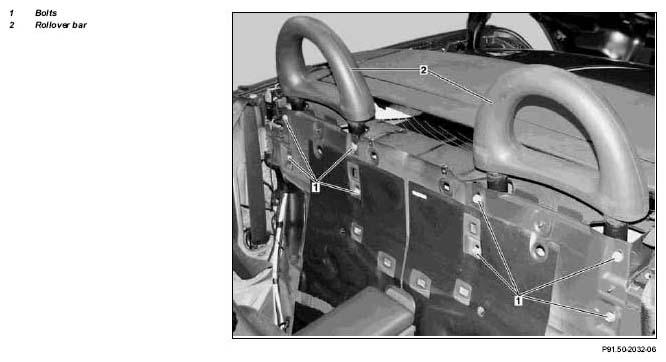

Fig 1: Identifying Roll Bar Remove/Install Components

	Remove/install
1	Remove rear wall panel		AR68.30-P-4750G
2	Unscrew bolts (1)		*BA91.50-P-1001-01A
3	Remove roll bar (2) upwards
4	Install in the reverse order

ROLLOVER BAR MECHANICAL SYSTEM

Number	Designation		Model 170
BA91.50-P-1001-01A	Screw of rollover bar unit to body	Nm	23
