Remove and install front seat backrest - AR91.10-P-1060G

MODEL 170

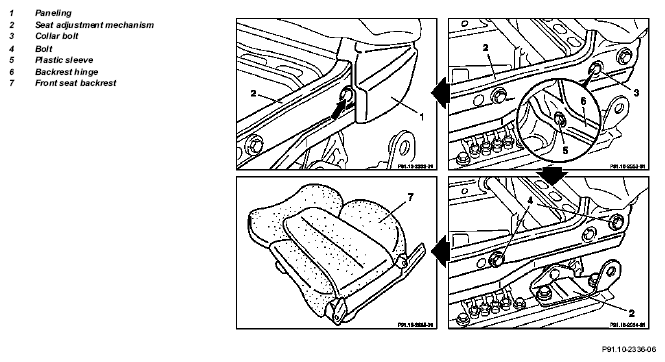

Fig 1: Identifying Front Seat Backrest Remove/Install Components

MODIFICATION NOTES

20.8.01

Value of changed from 20 Nm to 24 Nm

Value in BA91.10-P-1004-01A changed for model 170

*BA91.10-P-1004-01A

	Remove/install
1	Remove front seat		AR91.10-P-1000G
2	Remove driver's seat cushion	Without electric seat adjustment (Code 560)	AR91.10-P-1070G
		With electric seat adjustment (Code 560)	AR91.10-P-1070GA
3	Remove paneling (1) from outer backrest mounting	Pound in assembly pin (see arrow).
4	Loosen connection on the back seat height adjustment bellcrank by removing left and right collar bolts (3, WAF13)	When installing, check and/or insert left and right plastic sleeves (5) in the backrest hinges (6).	*BA91.10-P-1004-01A
5	Remove bolts (4, 4 bolts) from backrest mounting		*BA91.10-P-1003-01A
		Use the torx T45 socket set.
			Fig 2
6	Disconnect backrest heater cables
7	Disconnect backrest electric adjustment cables
8	Remove front seat back rest (7) from the seat adjuster (2)
9	Install in the reverse order

FRONT SEATS

Number	Designation		Model 170
BA91.10-P-1003-01A	Bolt at backrest fitting	Nm	35
BA91.10-P-1004-01A	Collar bolt on bellcrank	Nm	24

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
