Remove starter, install - AR15.30-P-7100GA

ENGINE 112.947 /960 in MODEL 170

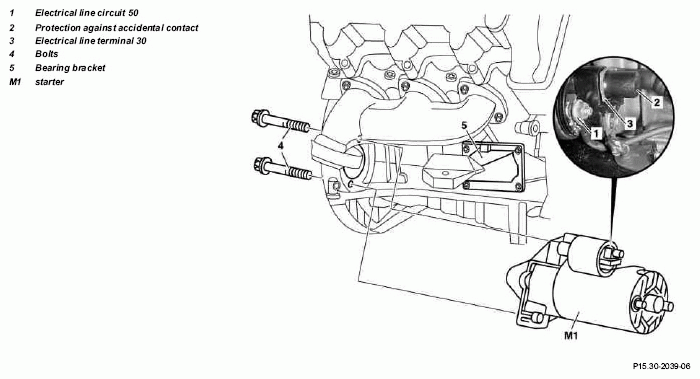

Fig 1: Identifying Starter Remove/Install Components (Engine 112.947 /960 In Model 170)

MODIFICATION NOTES

6.7.00	Value modified from 16 Nm to 14 Nm	Value BA15.30-P-1001-01A for Engine 112, 113 modified	*BA15.30-P-1001-01A
6.7.00	Value modified from 10 Nm to 6 Nm	Value in BA15.30-P-1002-01A modified on Engine 112, 113	*BA15.30-P-1002-01A
6.7.00	Value modified from 58 Nm to 42 Nm	Value in BA15.30-P-1003-01A for Engine 112, 113 modified	*BA15.30-P-1003-01A

	Remove/Install
1	Disconnect ground line of battery		AR54.10-P-0003A
2	Detach lower engine compartment paneling		AR61.20-P-1105A
3	Pull off protecton against accidental contact (2)
4	Disconnect electrical lines (1, 3)		*BA15.30-P-1001-01A
			*BA15.30-P-1002-01A
5	Remove bearing bracket (5) together with engine mount
6	Remove screws (4).		Fig 2
			*BA15.30-P-1003-01A
7	Take starter (M1) down and out
8	Install in the reverse order

STARTER

Number	Designation		Engine 112 except 112.951, 113.94/ 96/98
BA15.30-P-1001-01A	Nut of connection of circuit 30	Nm	14
BA15.30-P-1002-01A	Nut of connection circuit 50	Nm	6
BA15.30-P-1003-01A	Bolt of starter to crankcase	Nm	42

Fig 2: Identifying External Torx Set (001 589 76 09 00)
