Removing and installing electric window lift mechanism on rear side window - AR67.39-P-4150G

MODEL 170

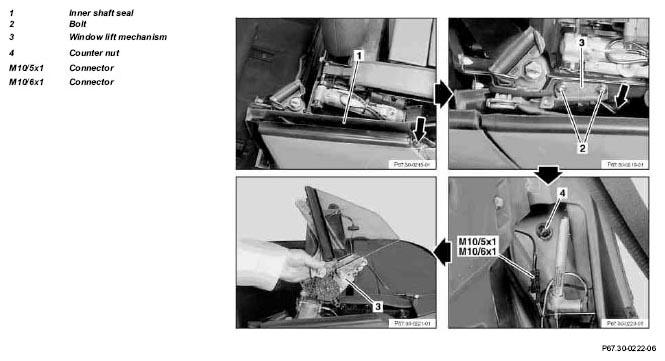

Fig 1: Identifying Electric Window Lift Mechanism On Rear Side Window Components

	Removal, installation
1	Remove rear wall panel		AR68.30-P-4750G
2	Remove inner shaft seal (1) (1 screw, arrow)
3	Unscrew bolts (2, 2 each)	Use T30 torx socket bolt attachment
			Figure
4	Unclip cable grommet (arrow) on B-pillar and separate connector (M10/5x1 or M10/6x1)
5	Unscrew counter nut (4) (13 mm)
6	Move threaded bolt out on B-pillar and remove window lift mechanism (3) upward out of window shaft	Right side of vehicle:  Due to lack of space resulting from tank fitting screw threaded bolt all the way in
7	Reinstall in opposite order, then check adjustment of rear side window and adjust, if necessary		AR67.30-P-4200G

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
