Removing and installing door arrester - AR72.10-P-2100G

MODEL 170, 208.3

Illustrated on model 170

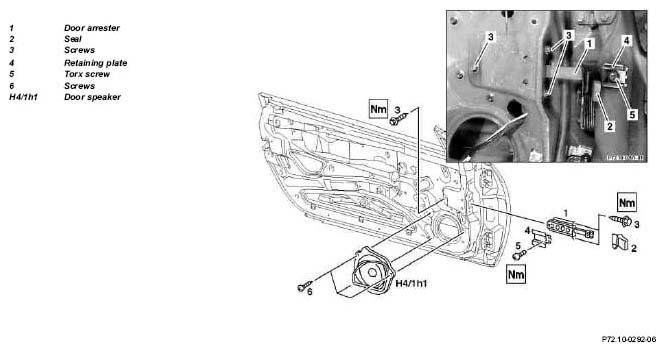

Fig 1: Identifying Door Arrester Remove/Install Components - Illustrated On Model 170

	Removal, installation
1	Remove door liner on front door	Model 170	AR72.10-P-1000G
		Model 208.3	AR72.10-P-1000K
2	Remove door speaker (H4/1h1)
3	Pull door foil off of inner door panel in front area	Replace door foil if damaged
4	Pull off seal (2)
5	Unscrew Torx screw (5) and remove retaining plate (4)	Avoid damaging paint	*BA72.10-P-1003-01A
6	Unscrew screws (3)	Installation:  When installing first tighten screws on end	*BA72.10-P-1007-01A
7	Pull seal (2) off of door arrester
8	Remove door arrester (1) through installation opening in inner door panel	Installation:  Lubricate door arrester below plastic cover with lubricating paste	*BR00.45-Z-1004-06A
9	Reinstall in opposite order

TORQUE SPECIFICATION

Number	Designation		Model 170	Models 208.3/4
BA72.10-P-1003-01A	Bolt on A-pillar door arrester	Nm	30	25
BA72.10-P-1007-01A	Bolt on door arrester on door	Nm	10	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1004-06A	Lubricant	A 001 989 46 51
