Removing and installing paneling at rear of Vario-roof - AR68.30-P-4360G

MODEL 170

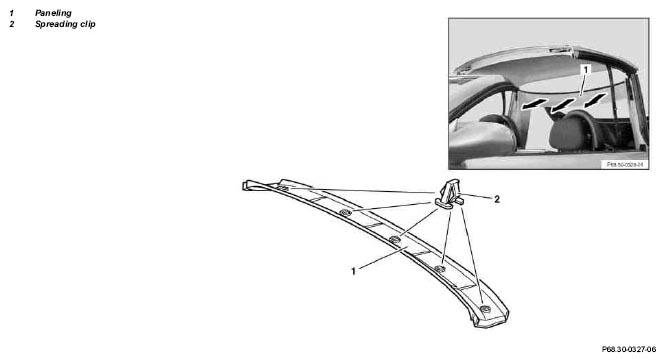

Fig 1: Identifying Paneling At Rear Of Vario-Roof Remove/Install Components

	Removal, installation
1	Move roof to installation position with roof switch	Leave ignition switched on. The Vario-roof remains in this position for 7 minutes after releasing the roof switch (stop function). It can be stopped in this position for another 7 minutes by pressing the roof switch again.
2	Remove paneling on C-pillar on one side		AR68.30-P-4500G
3	Remove paneling (1) in direction of arrow
4	Reinstall in opposite order	Align spreading clip (2)
