Removing and installing glove compartment lid - AR68.10-P-1200G
MODEL 170
| Removal, installation | |||

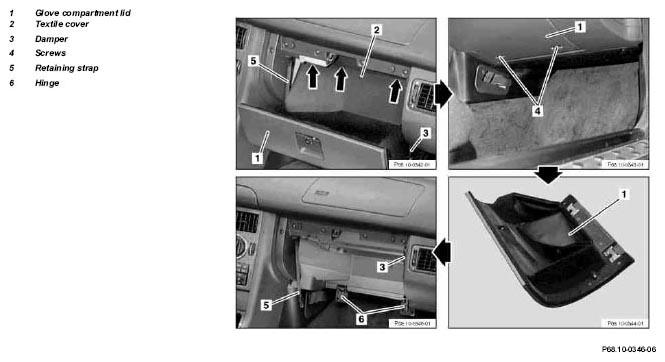

| 1 | Open glove compartment lid (1) | ||
| 2 | Unclip retaining rail for textile cover (2) at top with long wedge | Fig 2 | |
| 3 | Unclip insert clip on damper (3) | ||
| 4 | Unhook damper (3) | ||
| 5 | Unscrew screws (4, 4 each) on both hinges (6) | ||
| 6 | Pull glove compartment lid (1) out of hinges (6) | ||
| 7 | Remove clip at bottom of retaining strap (5) and unhook retaining strap (5) | ||
| 8 | Put down glove compartment lid (1) | ||
| 9 | Reinstall in opposite order, then check adjustment of glove compartment lid, adjust, if necessary | AR68.10-P-1300G |
