Removing, installing mirror glass adjuster drive - AR88.70-P-9060G
MODELS 168, 170, 208
| Removing, installing | |||

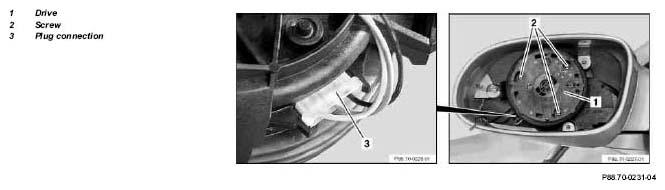

| 1 | Remove mirror glass | AR88.70-P-9020G | |
| 2 | Unscrew screws (2) | *WH58.30-Z-1040-06A | |
| 3 | Disconnect plug connector (3) and remove drive (1) | ||
| 4 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1040-06A | Torx screwdriver twist T10 |
