Removing, installing outside mirror glass - AR88.70-P-9020G

MODELS 168, 170, 208

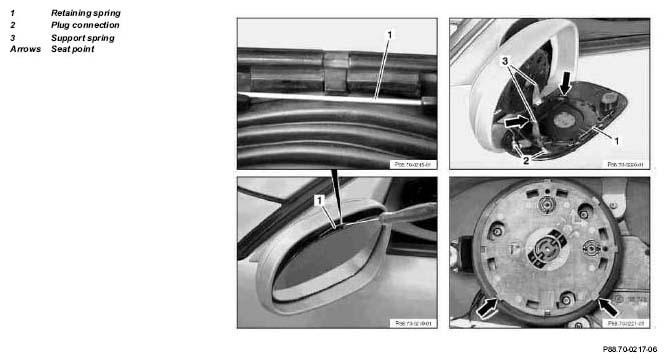

Fig 1: Identifying Outside Mirror Glass Remove/Install Components

	Removing, installing
1	Fold the outside mirror forward
2	Tip the top edge of the mirror glass to the outside
3	Using a screwdriver, push the retaining spring (1) upward and remove the mirror glass from the drive
4	Disconnect connector (2)
5	Install in the reverse order	Start with the bottom side of the mirror glass and work your way upward, paying attention to the support spring (3) and seat point (arrows)
