Removing and installing outside rearview mirror cover - AR88.70-P-9040G

MODEL 168, 170, 208

Shown on model 170

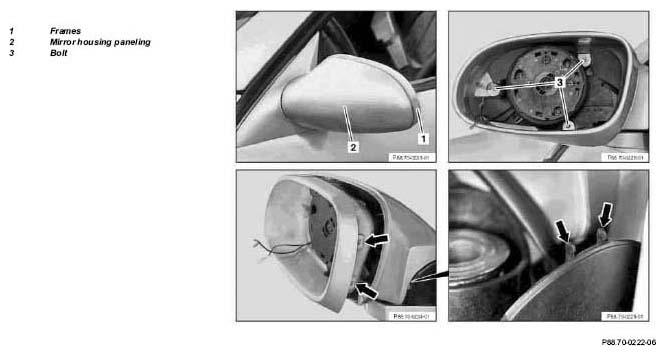

Fig 1: Identifying Outside Rearview Mirror Cover Remove/Install Components - Shown On Model 170

Shown on model 168

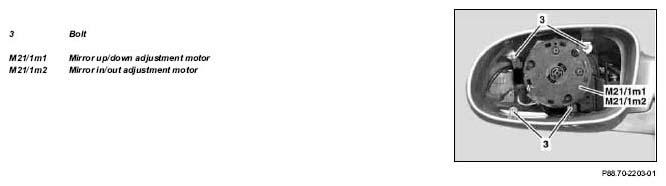

Fig 2: Identifying Outside Rearview Mirror Cover Remove/Install Components - Shown On Model 168

	Remove/install
1	Remove mirror glass		AR88.70-P-9020G
2	Unscrew bolts (3)		*WH58.30-Z-1040-06A
3.1	Remove mirror adjusting motor (M21/1m1, M21/1m2)	Model 168 only
4	Remove frame (1) and paneling for mirror housing (2)	Mirror housing (2) paneling and frame (1) are screwed together.
5	Install in the reverse order	Pay attention to mirror housing frame and paneling (arrows).

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1040-06A	Torx screwdriver twist T10
