Removing and installing power window motor in front door - AR72.29-P-1860G

MODEL 170

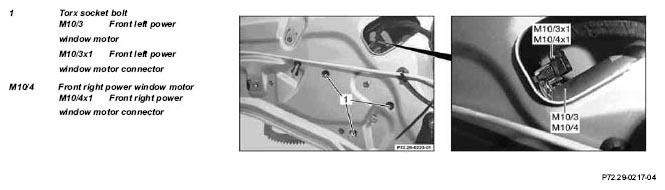

Fig 1: Identifying Power Window Motor In Front Door Remove/Install Components

	Removal, installation
1	Remove door liner on front door		AR72.10-P-1000G
2	Partially pull foil off of door liner	Until Torx socket bolts are visible
3	Disconnect front left power window motor connector (M10/3x1) or front right power window motor connector (M10/4x1) from front left power window motor (M10/3) or front right power window motor (M10/4)
4	Unscrew Torx socket bolt	Protect motor against falling
			Fig 2
			Fig 3
			*BA72.29-P-1001-01A
5	Remove front left power window motor (M10/3) or front right power window motor (M10/4) from door	Before installing grease gear on motor lightly Installation  : When installing pay attention to hole pattern for mounting
6	Reinstall in opposite order

Power windows

Number	Designation		Model 170
BA72.29-P-1001-01A	Screw for front power window motor	Nm	13

Fig 2: Identifying Torque Wrench (000 589 67 21 00)

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
