Removing and installing crank window in front door - AR72.10-P-1900G
MODEL 170 up to 31.1.00
| Removing, installing | |||
| 1 | Remove door liner | AR72.10-P-1000G | |
| 2 | Pull door foil off of inner door panel | ||

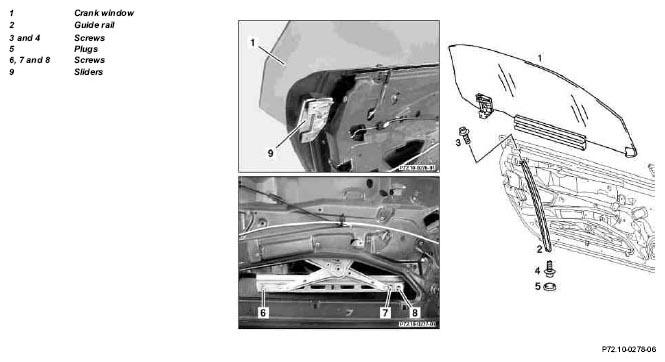

| 3 | Remove crank window (1) upwards, while guiding sliders (9) through rear opening in door shaft | ||
| 4 | Lay window (1) down on stable surface | ||
| 5 | Install in the reverse order |
