Removing and installing catches for tubular frame in trunk - AR77.33-P-3460G

MODEL 170

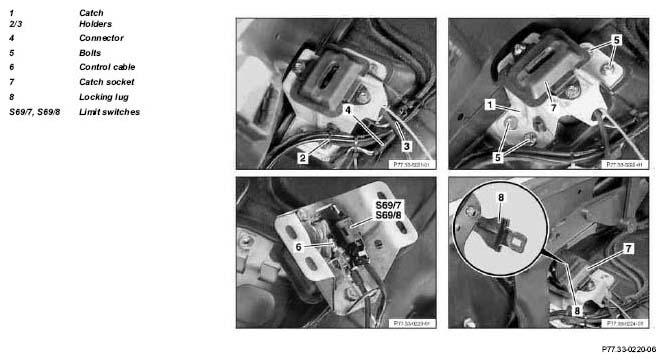

Fig 1: Identifying Catches For Tubular Frame In Trunk Remove/Install Components

	Removal, installation
1	Remove side paneling in trunk		AR68.30-P-4800G
2	Open holders (2, 3) for electric wiring harness or cut open
3	Disconnect connector (4)
4	Mark position of catch (1)
5	Unscrew bolts (5)		*BA77.33-P-1003-01A
6	Unhook control cable (6)
7	Reinstall in opposite order	Check entry of locking lug (8) in catch socket (7) when locking and correct catch (1), if necessary.
			*BA77.33-P-1004-01A

Vario-roof mechanism

Number	Designation		Model 170
BA77.33-P-1003-01A	Screws for catch on tubular frame in trunk	Nm	8
BA77.33-P-1004-01A	Screws for catch socket on catch on tubular frame in trunk	Nm	8
