Disassembly |
|
|
| 1 |
Remove side paneling in trunk |
|
AR68.30-P-4800G |
| 2 |
Pivot trunk lid toward rear with roof switch |
|
|
| 3 |
Remove catch socket, screw bolts back in and tighten |
 |
*BA77.33-P-1004-01A |
| 4 |
Actuate roof switch again momentarily in the opening direction |
The trunk lid pivots to the rear, Vario-roof closed |
|
| 5 |

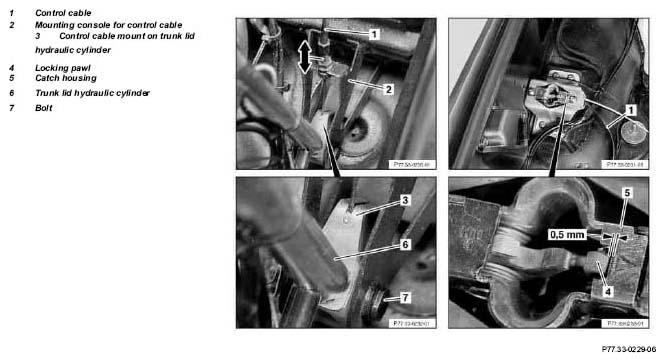

Check adjustment of control cable (1) |
Gap between locking pawl (4) and catch housing (5): 0.5 mm
When checking the oblong hole in the hydraulic cylinder (6) must be in contact with the top of the bolt (7), if necessary ↓ Press trunk lid forward by hand until the oblong hole is in contact with the top of the bolt (7) |
|
| |
Adjustment |
|
|
| 6 |
Adjust control cable (1) in direction of arrow |
|
|
| 7 |
Open and close trunk lid a number of times with roof switch |
Check gap between locking pawl (4) and catch housing (5), if necessary ↓ Readjust control cable (1) |
|
 |
Assembly |
|
|
| 8 |
Install catch socket |
Screw in screws without tightening |
|
| 9 |
Close trunk lid with roof switch |
|
|
| 10 |
Open trunk lid and tighten screws on catch socket |
|
*BA77.33-P-1004-01A |
| 11 |
Install side paneling in trunk |
|
AR68.30-P-4800G |
