Removing and installing seat adjustment switch unit on front seats - AR91.29-P-0003GG
MODEL 170 with CODE (560) Left and right electrically adjustable front seat
| Removing, installing | |||
| 1 | Remove front seat | AR91.10-P-1000G | |

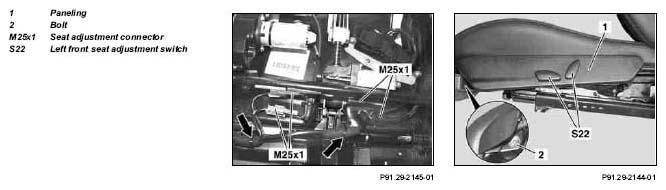

| 2 | Unscrew screw (2) | ||
| 3 | Push panel (1) toward front | ||
| 4 | Remove panel (1) downward together with switch (S22) | ||
| 5 | Disconnect seat adjustment connector (M25x1) at points indicated | ||
| 6 | Separate cable straps and expose wiring harness | ||
| N | Install in the reverse order | ||
| 8 | Carry out operational check |
