Removing and installing safety belt lock (front seat) - AR91.40-P-1515G

MODEL 170

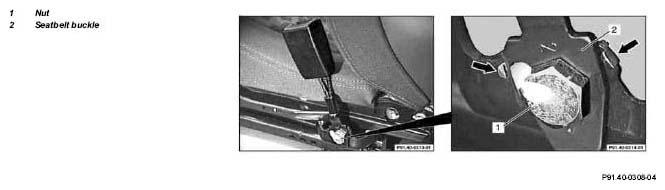

Fig 1: Identifying Safety Belt Lock (Front Seat) Remove/Install Components

	Removing, installing
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1	Remove front seat		AR91.10-P-1000G
2	Unscrew screw (1)	Installation:  Seatbelt buckle (2) must be positioned between the locating lugs (arrows) on the seat cushion frame	*BA91.40-P-1002-01F
			Figure
3	Take off seatbelt buckle (2)
3	Install in the reverse order

SEATBELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 170
BA91.40-P-1002-01F	Bolt to front seatbelt buckle	Nm	35

Fig 2: Identifying Torque Wrench (001 589 66 21 00)
