Removing and installing gas-operated strut on seat adjustment mechanism - AR91.10-P-1550G

MODEL 170

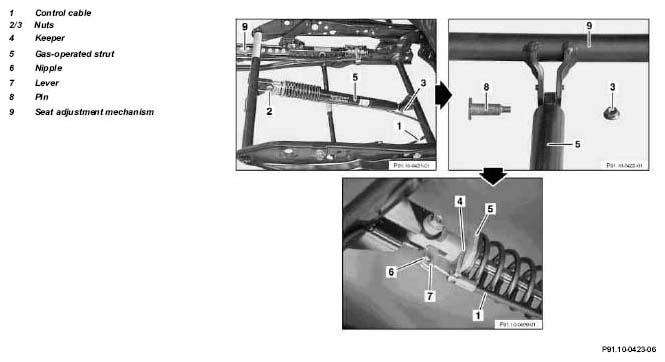

Fig 1: Identifying Gas-Operated Strut On Seat Adjustment Mechanism Remove/Install Components

	Removal, installation
1	Remove front seat		AR91.10-P-1000G
2	Remove driver's seat cushion		AR91.10-P-1070G
3	Unclip control cable at keeper (4) for gas-operated strut (5) and unhook	When installing check adjustment of control cable (1), adjust, if necessary	AR91.10-P-1500G
4	Detach gas-operated strut (5) by screwing off nuts (2 and 3) and pulling out pin (8)	When installing pay attention to arrest for pin (8)!
5	Remove gas-operated strut (5) from seat adjustment mechanism (9)	When installing ensure that gas-operated strut (5) is installed in correct position, ensure that lever (7) points downward.
6	Release gas in gas-operated strut and empty	Dispose of gas-operated strut (old part)	OS00.00-P-1001-01A
7	Reinstall in opposite order
