Removing and installing front power seat motor group (seat cushion) - AR91.29-P-1420G

MODEL 170 with CODE (560) Left and right electrically adjustable front seats

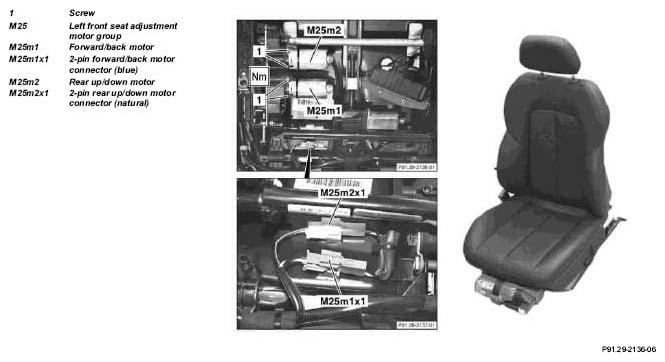

Fig 1: Identifying Front Power Seat Motor Group (Seat Cushion) Remove/Install Components

	Removing, installing
1	Remove front seat		AR91.10-P-1000G
2	Disconnect seat adjustment motor group connector (M25x1)	Only disconnect connector from defective motor.
3	Unscrew inner Torx screws (1)	Unscrew inner Torx screws only on defective motor.
			Figure
			*BA91.29-P-1001-01A
4	Remove motors (M25m1, M25m2)	Replace only defective motors.
5	Install in the reverse order

SEAT ADJUSTMENT

Number	Designation		Model 170
BA91.29-P-1001-01A	Screw for seat adjustment motor	Nm	4

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
