Remove/install front seat adjustment mechanism - AR91.10-P-1450G

MODEL 170

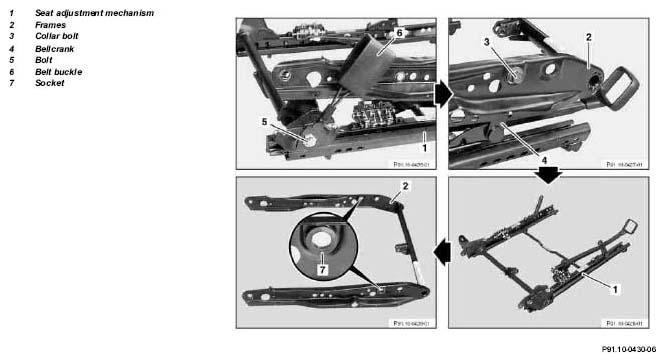

Fig 1: Identifying Front Seat Adjustment Mechanism Remove/Install Components

MODIFICATION NOTES

20.8.01

Value of changed from 20 Nm to 24 Nm

Value in BA91.10-P-1004-01A changed for model 170

*BA91.10-P-1004-01A

	Remove/Install
1	Remove front seat backrest		AR91.10-P-1060G
2	Remove gas-operated strut from seat adjusting mechanism		AR91.10-P-1550G
3	Remove housing at handle for adjusting seat height		AR91.10-P-1510G
4	Unscrew bolt (5) on buckle (6) and remove buckle (6) from seat adjusting mechanism (1)	Pay attention to buckle catch (6) on seat adjusting mechanism (1) when installing	*BA91.40-P-1003-01A
			*BA91.40-P-1002-01F
5	Unscrew collar screws (3) from bellcrank (4) at left front and right		*BA91.10-P-1004-01A
6	Remove frame (2) from seat adjuster (1)	Check bushes (7, 2 items) in frame (2) during installation and replace if necessary
7	Put seat adjusting mechanism down (1)
8	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Models 202, 208	Model 210
BA91.40-P-1003-01A	Screw/nut on front seat belt buckle	NM	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 170
BA91.40-P-1002-01F	Bolt to front seat belt buckle	NM	35

FRONT SEATS

Number	Designation		Model 170
BA91.10-P-1004-01A	Collar bolt on bellcrank	NM	24
