Removing and installing driver's seat cushion - AR91.10-P-1070GA

MODEL 170 with CODE (560) Left and right electrically adjustable front seat

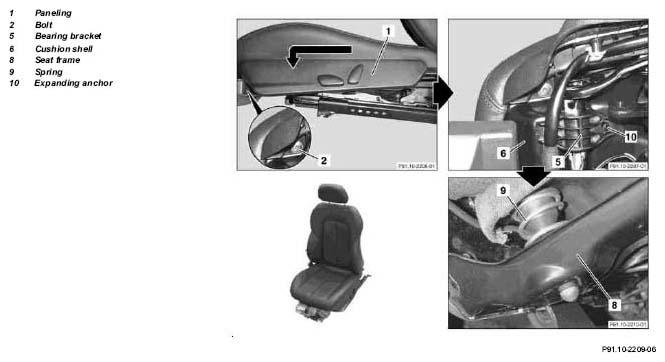

Fig 1: Identifying Driver's Seat Cushion Remove/Install Components

	Removing, installing
1	Remove driver's seat		AR91.10-P-1000G
2	Unscrew bolt (2)
3	Remove panel (1) toward front and downward
4	Pull the two expanding anchors (10) out of the front left and right bearing brackets (5) and remove bearing brackets (5)	Installation: The expanding anchors and bearing brackets are deleted parts and must be reordered for installation.
5	Disconnect connection leads for heated seat cushion in right driver seat cushion from 4-pin connector	Installation:  Insert connection leads into connector with present leads.
6	Lift seat cushion at front and remove from seat frame (8), then remove the two springs (9) on rear seat frame (8)	When installing insert both springs (9) into plate springs with narrow coils pointing downward at an angle and insert into humps on cushion shell (6). Push seat cushion toward rear below driver's backrest and fasten at front with bearing brackets (5).
N	Install in the reverse order
