Remove/install driver's seat cushion - AR91.10-P-1070G

MODEL 170 except CODE (560) Left and right electrically adjustable driver seat

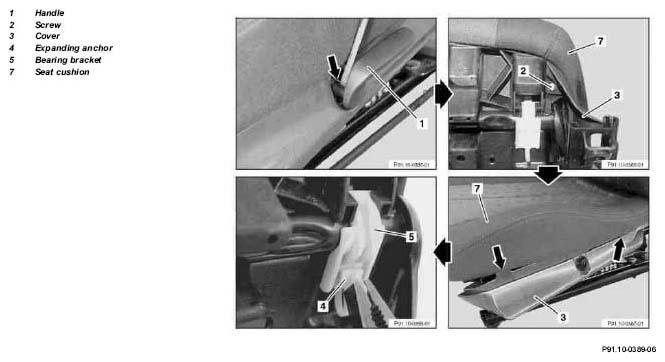

Fig 1: Identifying Driver's Seat Cushion Remove/Install Components (1 Of 2)

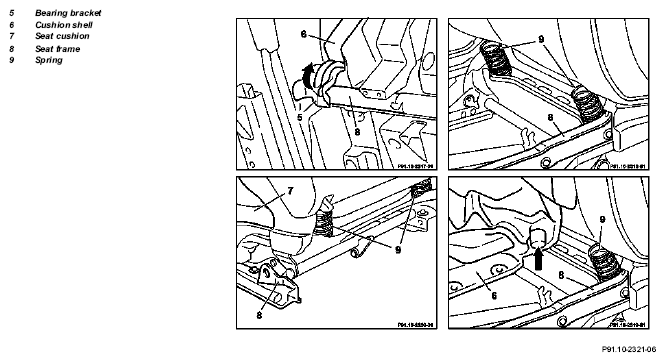

Fig 2: Identifying Driver's Seat Cushion Remove/Install Components (2 Of 2)

	Removing, installing
1	Remove driver's seat		AR91.10-P-1000G
2	Remove handle (1)	To do so, press on detent tab (arrow) using small screwdriver and remove handle (1).
3	Unscrew bolt (2)	Use internal Torx T 20 wrench socket.
			Figure
4	Press cover (3) downwards and remove at front
5	Remove dowels (4) on bearing bracket (5) at front left and right
6	Unclip bearing bracket (5) at left and right of cushion shell (6) and swivel outwards
7	Lift seat cushion (7) at front and remove from seat frame (8), then remove both springs (9) on the seat frame (8) at rear	When installing, insert both springs (9) with the tight windings downwards at an incline into the disk springs and insert into the cushion shell's (6) hump. Slide seat cushion (7) to the rear below the driver's seat backrest and fasten at front with the bearing bracket (5).
8	Install in the reverse order

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
