Cutting switch openings in cover - AR68.20-P-2030A: Notes

MODEL 140, 170, 202, 208, 210, 463

Fig 1: Cutting Switch Openings In Cover (1 Of 2)
G04632594

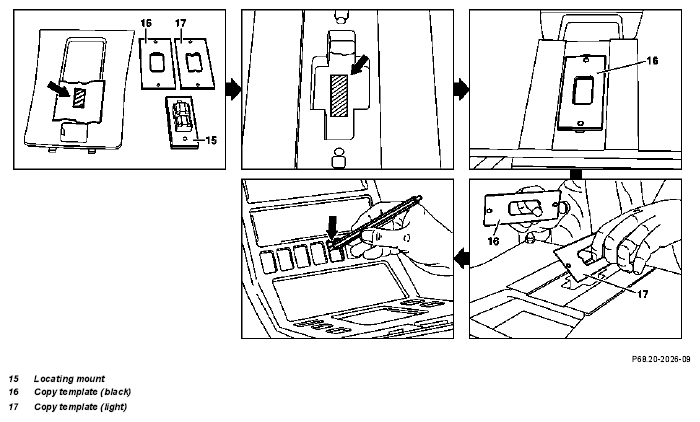

Fig 2: Cutting Switch Openings In Cover (2 Of 2)
G04632595
REMOVING Removal
1 Remove cover to be machined
  Machining
2 Mask painted cover surface NOTES in area of desired switch opening with paper adhesive strip.
3 Coarsely mark cutting position
4 Prepare locating mount (15) and copy template (16, 17) according to cover type and desired switch opening COMMERCIALLY AVAILABLE TOOLS Universal copy cutter with router (3 single-lip cutters ø 5x60mm, 2 single-lip cutters ø 5x90mm, copy templates, locating mounts for models 170, 202, 208, 210, 463). *WH58.30-Z-1011-20A
    IMPORTANT If the copy templates and locating mounts are not included in the universal copy cutter with router, use supplementary sets.
    COMMERCIALLY AVAILABLE TOOLS Supplementary set for locating mount (model 170) *WH58.30-Z-1012-20A
    COMMERCIALLY AVAILABLE TOOLS Supplementary set for copy templates and spacers (model 208) *WH58.30-Z-1013-20A
    Model 140 top and bottom cover AR68.20-P-2030-02S
    Model 170 top cover AR68.20-P-2030-02G
    Model 202 up to 31.08.95 top cover AR68.20-P-2030-02E
    Model 202 up to 31.08.95 bottom cover AR68.20-P-2030-02EB
    Model 202 as of 01.09.95 bottom cover AR68.20-P-2030-02EC
    With plastic or veneered extruded covers
    Model 208 cover AR68.20-P-2030-02K
    Model 202 as of 01.09.95 top cover AR68.20-P-2030-02ED
    Model 210 top cover
    Model 210 bottom cover AR68.20-P-2030-02FB
    Model 463 top cover AR68.20-P-2030-02H
    Model 463 up to 30.04.91 bottom cover AR68.20-P-2030-02I
    Model 463 as of 01.05.91 bottom cover AR68.20-P-2030-02J
5 Insert locating mount (15) from bottom into cover IMPORTANT Observe vehicle model and installation location of cover.
6 Insert locating mount (15) with cover into pins of locating and clamping block IMPORTANT Position of desired switch cutout should be visible from top through the locating and clamping device.
7 Clamp locating and clamping device (1) against upper plate DANGER Do not tighten handwheel (3) too tight so that cover does not distort.
8.1 Insert black copy template (16) into dowel pins of locating and clamping device (1). IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation
9.1 Cut out switch opening with manual router (2) IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation AR68.20-P-2030-01A
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1011-20A
10.1 Remove black copy template (16) IMPORTANT Model 140, 463 up to 31.07.89 with old switch generation
11 Insert light-colored copy template (17) into dowel pins of locating and clamping device (1)
12 Cut out switch opening with manual router (2) and turn table depth stop   AR68.20-P-2030-01B
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1011-20A
13 Remove cover and paper adhesive tape
14 Blacken visible cutting areas on cover with black felt pen
REMOVING Installation
15 Install cover
Commercially available tools

Number Designation
WH58.30-Z-1011-20A Universal profile milling machine with surface milling cutter
(3 single lip miller ø 5x60mm, 2 single lip miller ø 5x90mm, templates, fixing supports for model 129, 170, 202, 208, 210, 463), Firma Fetzer GmbH 75446 Wiernsheim-Pinache
WH58.30-Z-1012-20A Supplementary set for fixing support (model 170), Firma Fetzer GmbH 75446 Wiernsheim-Pinache
WH58.30-Z-1013-20A Supplementary set for templates and spacers (model 208), Firma Fetzer GmbH 75446 Wiernsheim-Pinache
