Retrofitting genuine wood parts - AZ68.30-P-0003G
MODEL 170 with CODE (800) Model year 2000

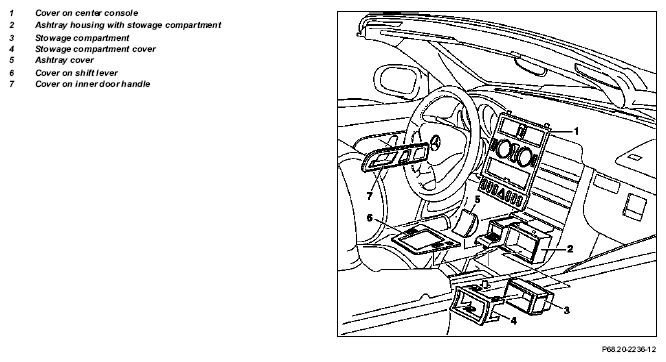

| Removing | |||
| 1 | Switch off ignition | ||
| 2 | Remove door liner on front door | ||
| AR72.10-P-1000G | |||
| 3 | Remove cover on inner door handle (7) | ||
| Disassemble door liner on front door | AR72.10-P-1030G | ||
| 4 | Remove telephone console | ||
| on vehicles with D-network portable cell phone (code 313) | AR82.70-P-8918A | ||
| on vehicles with "Standard" D-network telephone (code 314a) | AR82.70-P-8916A | ||
| 5 | Remove radio | ||
| AR82.60-P-7502EA | |||
| 6 | Remove cover on center console (1) | ||
| AR68.20-P-2350G | |||
| 7 | Remove center air nozzle | ||
| AR68.10-P-1150G | |||
| 8 | Remove cover on shift lever (6) | ||
| AR68.20-P-2310G | |||
| 9 | Remove switches for front power windows | ||
| AR72.29-P-0100G | |||
| 10 | Remove ashtray housing with stowage compartment (2) from front of center console | ||
| AR68.20-P-2410G | |||
| 11 | Remove ashtray cover (5) | ||
| 12 | Press in four springs lugs at top and bottom and pull stowage compartment (3) out of ashtray housing (2). | ||
| Installing | |||
| 13 | Retrofit genuine wood cover on stowage compartment | AZ68.20-P-0003-01G | |
| 14 | Complete vehicle with genuine wood trim |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Type of wood: Eucalyptus bar | 1 | |
| B6 676 2401 | Top cover for high dome, basic version (switches: ESP/ASR, hazard warning flashers, door lock) | 1 |
| B6 676 2402 | Top cover for high dome, heater switch (switches: same as basic version, ATA off) | 1 |
| B6 676 2403 | Top cover for high dome, heater switch (switches: same as basic version, headlamp cleaning system) | 1 |
| B6 676 2404 | Top cover for high dome, heater switch (switches: same as basic version, ATA off, headlamp cleaning system) | 1 |
| B6 676 2405 | 6 676 2405 Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats) | 1 |
| B6 676 2406 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats ATA OFF) | 1 |
| B6 676 2427 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats, headlamp cleaning system | 1 |
| B6 676 2407 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats, headlamp cleaning system, ATA off | 1 |
| B6 676 2408 | Lower center console cover (with manual transmission) | 1 |
| B6 676 2409 | Lower center console cover (with automatic transmission) | 1 |
| B6 676 2412 | Ashtray cover | 1 |
| B6 676 2413 | Stowage compartment cover | 1 |
| B6 676 2410 | Door handle recess (left) | 1 |
| B6 676 2411 | Door handle recess (right) | 1 |
| Type of wood: anthracite bird-eye maple | 1 | |
| B6 676 2414 | Top cover for high dome, basic version (switches: ESP/ASR, hazard warning flashers, door lock) | 1 |
| B6 676 2415 | Top cover for high dome, heater switch (switches: same as basic version, ATA off) | 1 |
| B6 676 2416 | Top cover for high dome, heater switch (switches: same as basic version, headlamp cleaning system) | 1 |
| B6 676 2418 | Top cover for high dome, heater switch (switches: same as basic version, ATA off headlamp cleaning system) | 1 |
| B6 676 2419 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats) | 1 |
| B6 676 2420 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats, ATA OFF) | 1 |
| B6 676 2421 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats, headlamp cleaning system | 1 |
| B6 676 2422 | Top cover for high dome, heater switch (switches: same as basic version, L/R heated seats, headlamp cleaning system, ATA off | 1 |
| B6 676 2423 | Lower center console cover (with manual transmission) | 1 |
| B6 676 2424 | Lower center console cover (with automatic transmission) | 1 |
| B6 676 2428 | Ashtray cover | 1 |
| B6 676 2429 | Stowage compartment cover | 1 |
| B6 676 2426 | Door handle recess (left) | 1 |
| B6 676 2425 | Door handle recess (right) | 1 |
