Removal, installation |
|
|
 |
Sealing joints following repair |
Includes sealing joints on trunk lid |
AR97.10-P-4000G |
|
Preserving hollow cavities following repair |
Includes preserving hollow cavities in trunk lid |
AR97.20-P-1500G |
| 1 |
Remove trunk lid and striker eye |
Do not separate striker eye |
AR88.50-P-5020G |
| 2 |

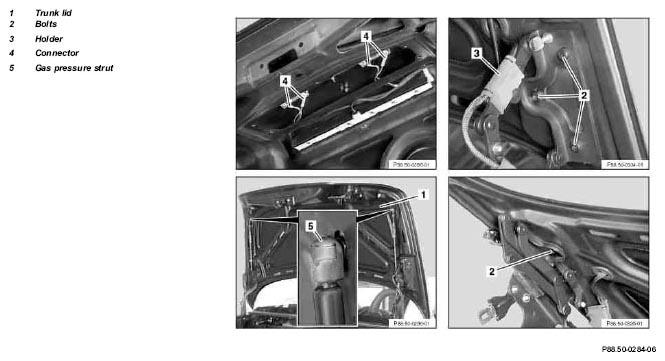

Disconnect connectors (4) |
|
|
| 3 |
Open or separate holder (3) for electric wiring harness and pull wiring harness out of trunk lid |
|
|
| 4 |
Mark position of hinge lever on trunk lid (1), loosen bolts (2) and unscrew two bolts on each side |
 |
*BA88.50-P-1009-01A |
| 5 |
Unhook gas pressure strut (5) from trunk lid with aid of second mechanic, unscrew bolts (2) and remove trunk lid (1) |
|
|
| 6 |
Reinstall in opposite order |
Check adjustment of trunk lid, if necessary ↓ |
|
| |
|
Adjust trunk lid |
AR88.50-P-5200G |
