Removing and installing engine hood hinge - AR88.40-P-3060G
MODEL 170
| Removal, installation | |||
| 1 | Remove engine hood | AR88.40-P-3000G | |
| 2 | Remove inner fender in front fender | AR88.10-P-1300G | |

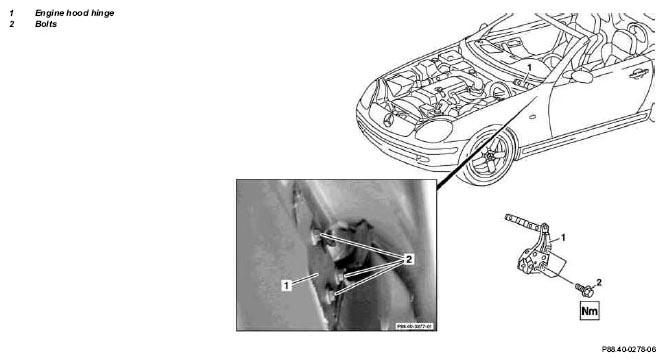

| 3 | Mark installation position of engine hood hinge (1) | ||
| 4 | Unscrew bolts (2) and remove engine hood hinge (1) | *BA88.40-P-1005-01A | |
| Preserve engine hood hinges with hollow cavity wax. Use approved wax preservation agent, see Service Microfiche, Specifications for service products, sheet no. 385 |
|||
| 5 | Reinstall in opposite order |
| Number | Designation | Model 170 | |
|---|---|---|---|
| BA88.40-P-1005-01A | Bolt on engine hood hinge | Nm | 10 |
