Removing and installing inner fender in front fender - AR88.10-P-1300G

MODEL 170

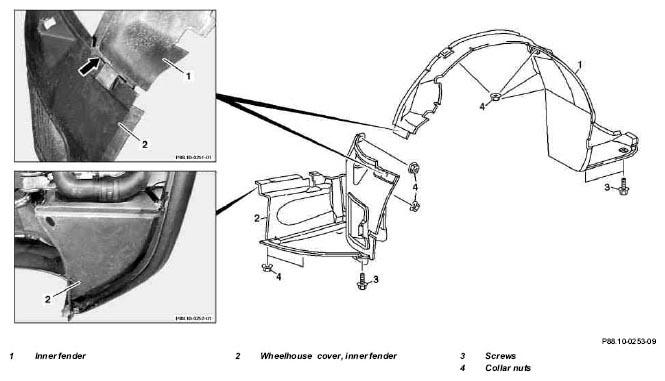

Fig 1: Identifying Inner Fender In Front Fender Remove/Install Components

Revisions

30.4.98

Removing wheelhouse deleted

Previously step 1

AR88.10-P-1300G

	Removal, installation
1	Remove wheel
2	Remove sound-proofing capsule below engine
3	Remove inner fender (1)	Installation  : Clip inner fender (1) into cover for wheelhouse inner fender (2) (arrow)
4	Remove cover for wheelhouse inner fender (2)	On vehicles with charge air cooler, press charge air tube to side, if necessary
