Remove/install tubular frame for trunk lid - AR88.50-P-5100G: Notes

MODEL 170

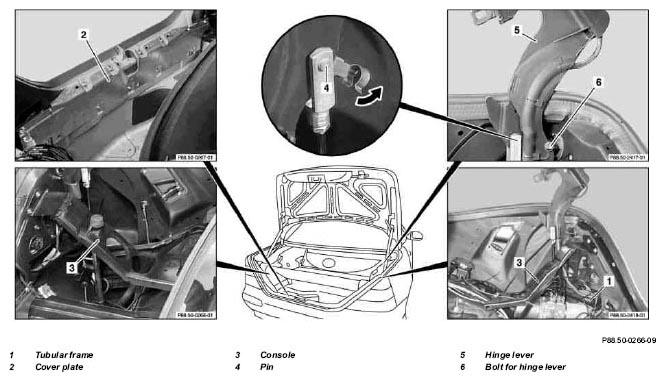

Fig 1: Identifying Tubular Frame For Trunk Lid Remove/Install Components (1 Of 3)

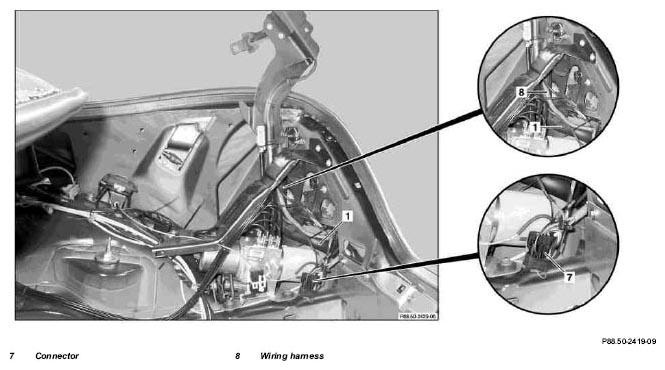

Fig 2: Identifying Tubular Frame For Trunk Lid Remove/Install Components (2 Of 3)

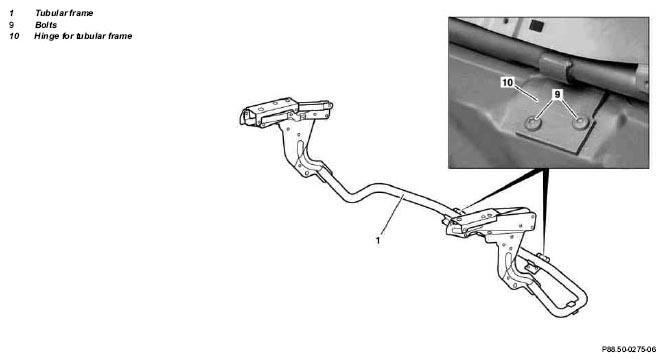

Fig 3: Identifying Tubular Frame For Trunk Lid Remove/Install Components (3 Of 3)

	Remove/Install
1	Remove side paneling in trunk		AR68.30-P-4800G
2	Remove cover plate (2) from rear center section		*BA77.33-P-1006-01A
3	Remove console (3) on left and right		*BA77.33-P-1005-01A
4	Remove bolt (4) from hydraulic cylinder to tubular frame (1).
5	Separate connector (7)
6	Open electric wiring harness (8) on tubular frame (1) or cut open
7	Close trunk lid and pivot toward rear	In this position the trunk lid can be removed by a mechanic.
8	Mark position of hinge lever (5), unscrew bolts from hinge lever (6) and remove trunk lid	When removing press trunk lid lock	*BA88.50-P-1010-01A
9	Unscrew bolts (9) from tubular frame hinge (10) and remove tubular frame (1).		*BA88.50-P-1011-01A
10	Install in the reverse order	When replacing ↓
		Adjust tubular frame Check trunk lid adjustment, if necessary ↓	AR88.50-P-5100-01G
		Adjust trunk lid	AR88.50-P-5200G

SOFT TOP - MECHANICAL SYSTEM

Number	Designation		Model 170
BA77.33-P-1005-01A	Bolt, console of roof stowage in trunk	NM	8
BA77.33-P-1006-01A	Bolts, closing plate to rear center assembly	NM	8

TRUNK LID

Number	Designation		Model 170
BA88.50-P-1010-01A	Bolt, hinge lever to tubular frame	NM	25
BA88.50-P-1011-01A	Bolt, hinge of tubular frame to rear center assembly	NM	25
