Removal/installation |
|
|
| 1 |
Remove paneling from rear center section |
|
AR68.30-P-4785G |
| 2 |
Remove left and right side paneling |
|
AR68.30-P-4800G |
| 3 |
Open trunk lid |
Turn lid in normal position |
|
| 4 |

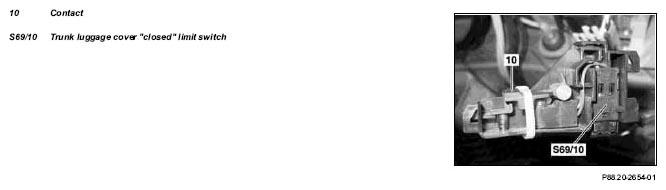

Fasten connector (10) for trunk luggage cover "closed limit switch (S69/10) with tie strap |
Do not damage contact (10) of trunk luggage cover "closed" limit switch (S69/10) to ensure proper function
Do not disconnect connector. |
|
| 5 |

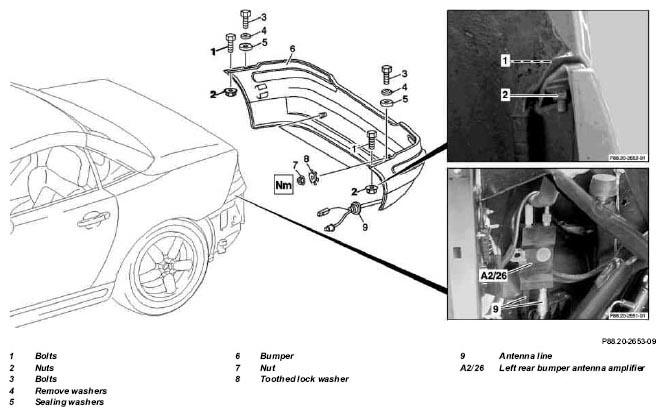

Disconnect antenna lines (9) from left rear bumper antenna amplifier (A2/26) and press grommet toward outside |
Do not damage antenna lines (9) to ensure for proper function |
|
| |
|
Installation
: Grommet for antenna lines (9) should be seated securely in fender to prevent water ingress |
|
| 6 |
Unscrew nut (7) and remove toothed lock washer (8) |
 |
*BA88.20-P-1002-01A |
| 7 |
Unscrew bolts (3) from inner fender, remove washers (4) and sealing washers (5) |
Installation
: Check sealing washers (5), replace if necessary |
|
| 8 |
Unscrew nut (2) from bolt (1) on outer left and right |
|
|
| 9 |
Remove bumper (6) |
Remove bumper toward rear. |
|
| 10.1 |
Modify the AMG-bumper |
Installation
: See installation instructions for accessories |
|
 |
|
Retrofitting AMG trims |
AZ88.00-P-0001I |
| 11 |
Install in the reverse order |
|
|
