Remove/install inner sealing rail - AR72.10-P-1600G

MODEL 170, 208.3, 215

Shown on Model 170

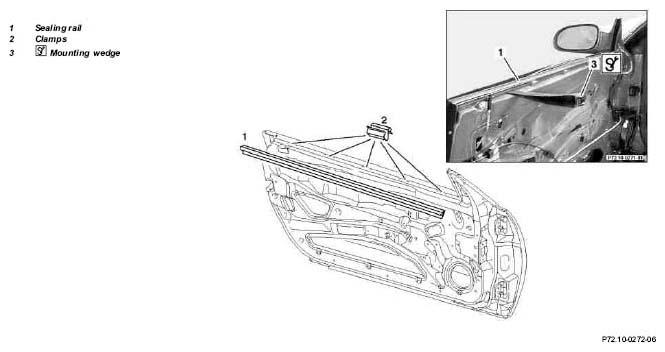

Fig 1: Identifying Inner Sealing Rail Remove/Install Components - Shown On Model 170

	Remove, Install
1	Open crank window
2	Remove door liner from front door	Model 170	AR72.10-P-1000G
		Model 208.3	AR72.10-P-1000K
		Model 215	AR72.10-P-1000N
3	Press sealing rail (1) off of inner door panel with installation wedge (3) and remove	Move assembly wedge (3) directly next to clips (2).	Figure
4	Check clips (2), 5 each, for damage.	Clips (2) are attached to inner door panel. Installation:  Replace defective clips (2).
5	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
