Disassembling and assembling door liner on front door - AR72.10-P-1030G
MODEL 170
| Disassembly and assembly | |||

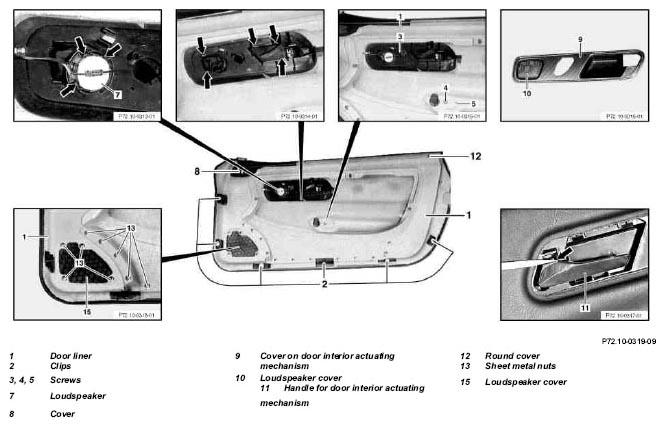

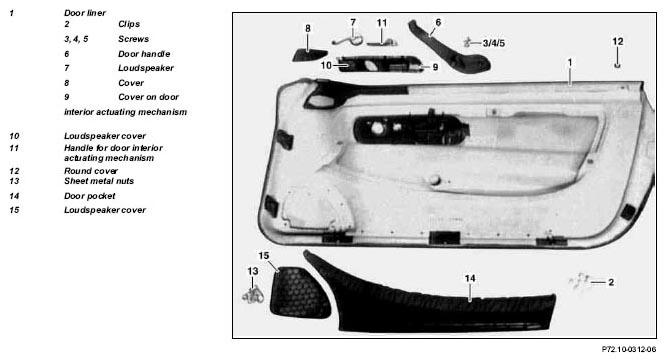

| 1 | Remove door liner on front door | AR72.10-P-1000G | |
| 2 | Remove clips (2, 6 each) from door liner (1) | ||
| 3 | Unscrew screws (3, 4 and 5) and remove door handle (6) | ||
| 4 | Unclip loudspeaker (7) (arrow) | ||
| 5 | Unclip cover (8) | ||
| 6 | Unclip cover (9) (arrows) and remove | ||
| 7 | Unclip small loudspeaker cover (10) on cover (9) | ||
| 8 | Unclip handle for door interior actuating mechanism (11) (arrow) and remove toward front | ||
| 9 | Press out round cover (12) | ||
| 10 | Unscrew sheet metal nuts (13, 16 each) and remove door pocket (14) and loudspeaker cover (15) | ||
| 11 | Reinstall in opposite order |
