Removing and installing telescoping nozzle for headlamp cleaning system - AR82.15-P-6100G
MODEL 170 with CODE (600a) Headlamp cleaning system
| Removal, installation | |||
| 1 | Remove headlamp unit | AR82.10-P-4730EC | |
| 2 | Remove front bumper | AR88.20-P-2000G | |
| 3 | Pull retaining clip (1) off of washing water hose (2) | ||
| 4 | Pull off washing water hose (2) | ||

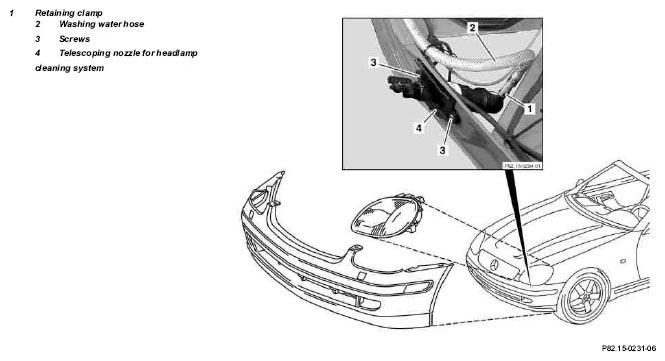

| 5 | Unscrew screws (3) from telescoping nozzle for headlamp cleaning system (4) | Fig 2 | |
| 6 | Pull telescoping nozzle for headlamp cleaning system (4) out toward front | ||
| 7 | Reinstall in opposite order |
