Removing and installing front bumper - AR88.20-P-2000G

MODEL 170 up to 31.Jan.00

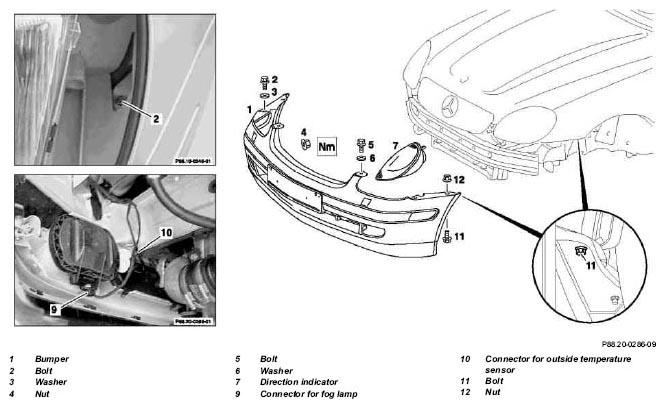

Fig 1: Identifying Front Bumper Remove/Install Components - Model 170 Up To 31.Jan.00

Modification notes

30.4.98	Removal of road wheels is no longer required	Previously step 2
30.4.98	Removal of wheel arch panel is no longer required	Previously step 5
30.4.98	Clip has been replaced by screw (11) with collar nut (12)	Step 6

	Removing, installing
1	Open engine hood		AR88.40-P-1000G
2	Separate the connectors on the right and left turn indicator lamps (7)
3	Remove the right and left turn indicator lamps (7)	Disengage turn indicator lock tabs by pushing them to the side
4	Separate right and left fog lamp connectors (9)	The connectors can be reached through an opening in the wheel arch panel of the front fender.
5	Separate the connector (10) for the outside temperature sensor	Cf. code (240a) outside temperature indicator
6	Turn out the screws (11) on both sides	Hold nut (12) steady.
7	Turn out the screws (2 and 5) on both sides and take off the washers (3 and 6)
8	Screw off the nuts (4) on both sides		*BA88.20-P-1001-01A
9	Remove bumper (1)	Pull the bumper down slightly as you remove it to avoid scratching the surface
10	Modify the AMG-bumper	Cf. installation instructions for accessories: ↓
		Fit and install the new AMG trim parts.	AZ88.00-P-0001I
11	Install in the reverse order

BUMPER

Number	Designation		Model 170
BA88.20-P-1001-01A	Nuts front bumper attachment to crossmember	Nm	10
