Removing and installing E call emergency call system control module - AR82.95-P-0008I
MODEL 170 with CODE (348a) EMERGENCY CALL system with CODE (494a) US version

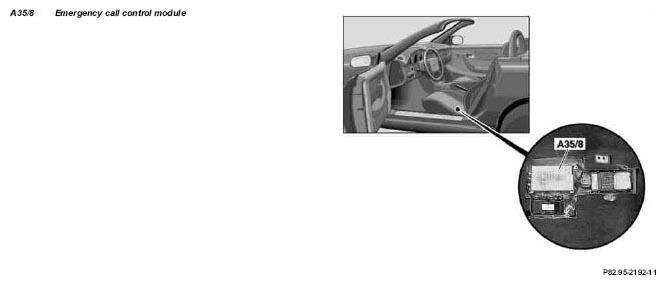

Below driver's seat
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003A | |
| 3 | Remove front seat | AR91.10-P-1000G | |
| 4 | Disconnect antenna leads from emergency call control module (A35/8) | ||
| 5 | Release and disconnect connectors on emergency call control module (A35/8) | ||
| 6 | Remove emergency call control module (A35/8) from vehicle floor | ||
| 7 | Install in opposite order |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
