Removing and installing side airbag sensor - AR91.60-P-0710G
MODEL 170 with CODE (292) left and right front side airbag
Illustration shows left side of vehicle

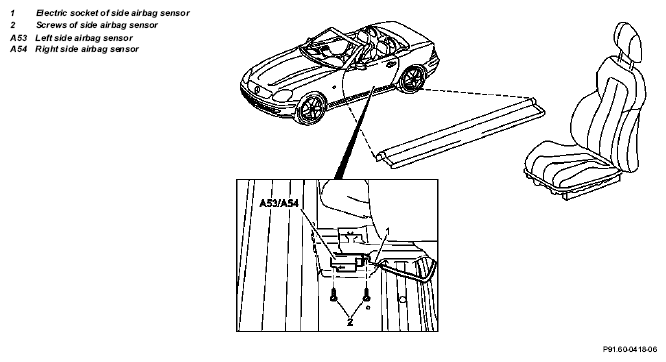

Fig 1: Identifying Side Airbag Sensor Remove/Install Components - Illustration Shows Left Side Of Vehicle
| Removing, installing | |||
| Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors | Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0002-01B | |
| 1 | Disconnect battery | ||
| 2 | Withdraw ignition key | ||
| 3 | Remove entrance plate | ||
| 4 | Remove front seat | AR91.10-P-1000G | |
| 5 | Remove attachment of floor covering at rear wall | ||
| 6 | Turn over floor covering to the front | ||
| 7 | Unplug electric socket (1) | ||
| 8 | Unscrew screws (2) | ||
| 9 | Take out side airbag sensor | ||
| 10 | Install in the reverse order | ||
| 11 | Carry out diagnosis | see Diagnosis Manual |
