Removing and installing windshield molding - AR67.10-P-1200G

MODEL 170

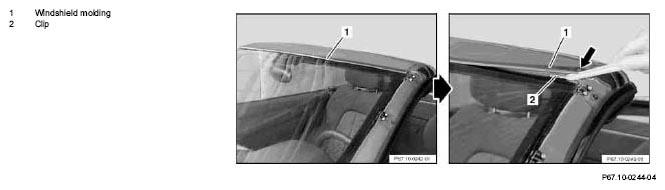

Fig 1: Identifying Windshield Molding Components

	Removal
1	Remove paneling on outside of A-pillar	Remove paneling on outside of A-pillar on one side only	AR88.80-P-8500G
2	Lift windshield molding (1) at side with plastic wedge (arrow) and pull out of clips (2, 6 each)		Fig 2
	Installation
3	Position windshield molding (1) on clips (2, 6 each), align at side and press on
4	Install paneling on outside of A-pillar		AR88.80-P-8500G

Fig 2: Identifying Long Wedge (115 589 03 59 00)
