Removing and installing rear side windows - AR67.30-P-4000G
MODEL 170
| Removal, installation | |||
| 1 | Remove electric window lift mechanism on rear side window | AR67.39-P-4150G | |

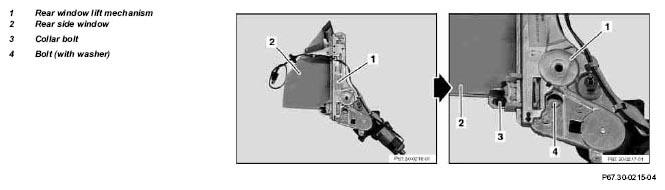

| 2 | Position rear side window (2) in removal and installation position by connecting power window motor to power source (12 volt) and moving until bolts (3 and 4) are in the assembly holes in the window lift mechanism (1) | ||
| 3 | Unscrew collar bolts (3) and bolt (4, with washer) (10 mm) | ||
| 4 | Remove rear side window (2) from window lift mechanism (1) | ||
| 5 | Reinstall in opposite order |
