Adjusting rear side windows - AR67.30-P-4200G

MODEL 170

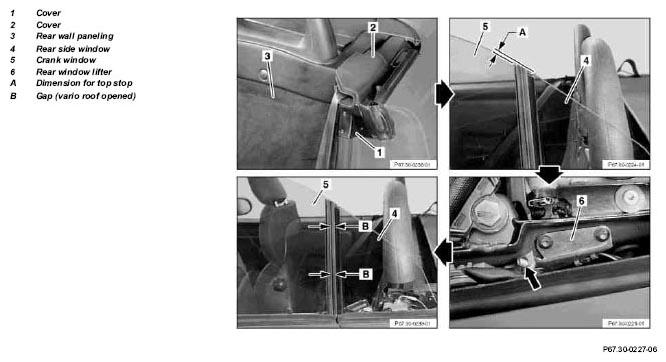

Fig 1: Identifying Rear Side Windows Components

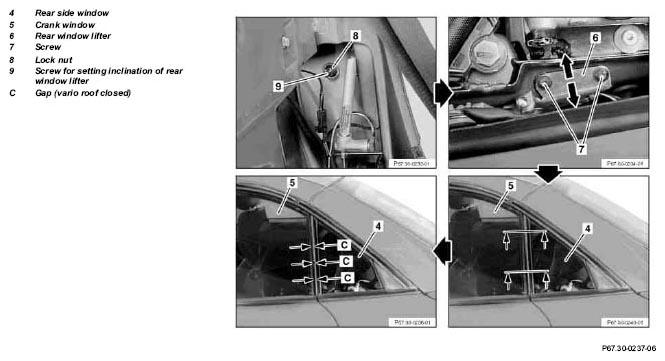

Fig 2: Identifying Rear Side Windows Components

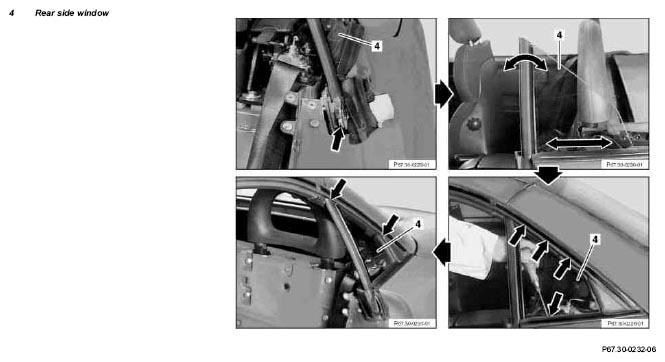

Fig 3: Identifying Rear Side Windows Components

	Adjusting
1	Inspect alignment of crank window at driver door, correct if necessary		AR72.10-P-1950G
2	Open  vario roof
3	Remove trim (1) and cover (2) at B-pillar
4	Remove inner slot seal at B-pillar (1 screw)
5	Partially detach rear wall paneling (3) on side at B-pillar
6	Close rear side window (4), separate terminal block (M10/5x1 and M10/6x1) for this step and connect to power source (12 V)
7	Close crank window (5) at driver door
8	Adjust top stop for rear side window (4) (dimension "A")	Carry out adjustment at setting screw (arrow) at top stop of rear window lifter (6)	*BE67.30-P-1001-01A
9	Inspect size of gap ("B") between edge of glass of crank window (5) and trim strip at rear side window, adjust if necessary		*BE67.30-P-1002-01A
10	To adjust, slacken front screw (arrow) at rear side window (4)	Set gap between edge of glass of crank window (5) and rear side window (4) parallel
11	Open rear side window (4) and connect terminal block (M10/5x1 and M10/6x1) to wiring harness
12	Install inner shaft seal on B-pillar
13	Close vario roof
14	Screw in adjustment screw (arrow) at top of rear window lift mechanism until it makes contact with the top stop
15	Check inclination of rear side window (4) relative to top weather seal at vario roof (arrows), adjust if necessary
16	Slacken lock nut (8) and align rear side window (4) by turning the adjusting screw (9, waf 5.5) so that it rests evenly against the weather seal surround at the top (arrows) and with a slight tension	Turning adjusting screw (9) in means moving inclination of rear side window at top further out
17	Additional adjustment facility of inclination of rear side window at top attachment point of rear window lifter (6), slacken screw (7) for this step and move rear window lifter (6) in desired direction (arrows)	Use internal torx wrench socket T 30
			Fig 4
18	Inspect contour of rear side window (4) to crank window (5) of driver door, adjust if necessary	The crank window (5) must be positioned flush with the vertical trim strip of the rear side window (4). An adjustment is possible by setting the rear guide rail at the crank window of the driver door
19	Inspect size of gap "C" with vario roof closed	If both side windows (4 and 5) are correctly aligned, the specified value (dimension "C") must be achieved	*BE67.30-P-1003-01A
20	Attach rear wall paneling (3)
21	Install cover (2) and trim (1)
22	Carry out operational check

Inspection data of rear side windows

Number	Designation			Model 170
BE67.30-P-1001-01A	Top projection of rear side window to crank window	Dimension "A"	mm	5
		Fig. see		AR67.30-P-4200G
BE67.30-P-1002-01A	Gap between edge of glass of crank window and trim strip at rear side window	Dimension "B"	mm	5
		Fig. see		AR67.30-P-4200G
BE67.30-P-1003-01A	Gap between edge of glass of crank window and trim strip at rear side window	Dimension "C"	mm	6...8
		Fig. see		AR67.30-P-4200G

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)

Fig 5: Identifying Feeler Gage (129 589 03 21 00)
