Removing and installing emergency call auxiliary battery - AR82.95-P-0010A
MODEL 170 with CODE (348a) EMERGENCY CALL system with CODE (494a) US version

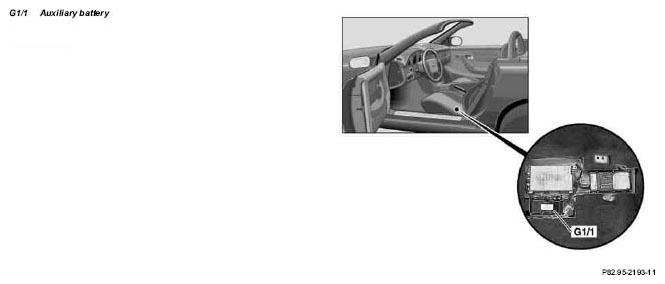

Below driver's seat
| Removal, installation | |||
| 1 | Remove front seat | AR91.10-P-1000G | |
| 2 | Remove cover from equipment box | ||
| 3 | Disconnect connector from auxiliary battery (G1/1) | ||
| 4 | Remove auxiliary battery (G1/1) from vehicle floor | ||
| 5 | Install in opposite order |
