Removing and installing GSM 1800 MHz network compensator - AR82.70-P-0010G
MODEL 170 as of 1.7.00 with CODE (854) MB cellular telephone
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. | No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003A | |
| Notes on battery | All models. | AH54.10-P-0001-01A | |
| 3 | Remove side cover on left side of trunk | AR68.30-P-4800G | |
| 4 | Remove antenna splitter in left wheelhouse | ||

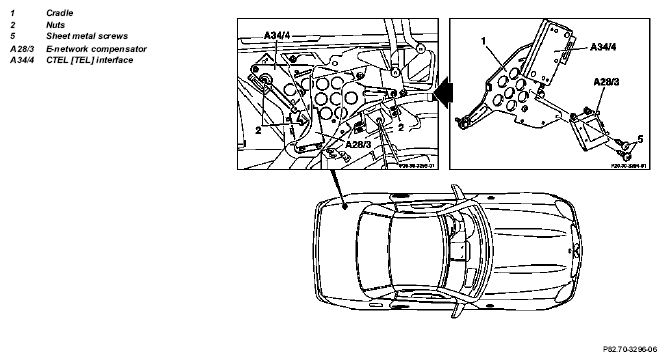

| 5 | Unscrew nut (2) | ||
| 6 | Carefully lift cradle (1) with control modules out of spare wheel recess | ||
| 7 | Release coupling on control modules and remove | ||
| 8 | Disconnect antenna cable on E-network compensator (A28/3) | ||
| 9 | Loosen sheet metal screw (5) | ||
| 10 | Remove E-network compensator (A28/3) | ||
| 11 | Install in the reverse order |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
