ME-SFI ignition ON - function - GF07.61-P-3005SM

ENGINE 113.986

ENGINE 113.987

ENGINE 113.988

ENGINE 113.989

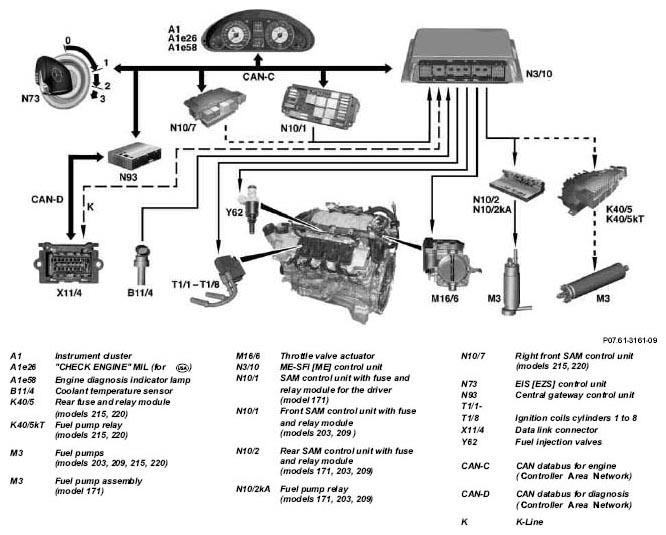

Fig 1: ME-SFI Ignition ON - Function

Functions in the case of ignition ON:

• The ME gasoline injection and ignition system is supplied with voltage by the corresponding SAM control unit.
• To achieve full running protection the fuel pump (M3) or the fuel pump assembly (M3) is actuated for about 2 seconds (only for the first ever ignition ON).
• The engine diagnosis indicator lamp (A1e58) (for "CHECK ENGINE" MIL (A1e26)) in instrument cluster (A1) lights up for about 1 second (lamp check).
• Data exchange takes place with the EIS [EZS] control unit (N73) over the CAN databus (terminal 50 signal).
• The fault memory can be read out and erased via the data link connector (X11/4).
• Correction programming and diagnosis can be performed using the STAR DIAGNOSIS.

	European On-Board Diagnosis (EOBD) ME - function	Except	GF07.61-P-1000SM
	On-Board Diagnosis (OBD) ME - function	At	GF07.61-P-1001SM
	ME fuel supply - function		GF07.61-P-3004SM
	Engine electronics (ME) ignition system - function		GF07.61-P-3008SM
	Correction programming - function		GF07.61-P-3031SM
	Voltage supply of ME-SFI control unit - function		GF07.61-P-5001SM
