Removing and installing Distronic control module - AR54.21-P-0005I
MODEL 215, 220 with CODE (219a) Distronic (DTR)

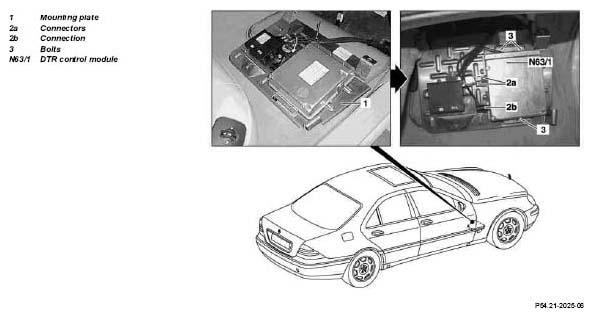

Shown on model 220
| Removing, installing | |||
| 1 | Connect quiescent current retention unit | Models 215, 220 | AR54.10-P-1030-07I |
| 2 | Disconnect ground cable of battery | Models 215, 220 | AR54.10-P-0003I |
| 3 | Fold back floor covering in passenger's footwell and remove polystyrene panel | ||
| 4 | Detach mounting plate (1) in passenger's footwell and fold out into footwell | ||
| 5 | Remove connectors (2a) and connection (2b) | ||
| 6 | Unscrew bolts (3) and remove DTR control module (N63/1) from mounting plate | ||
| 7 | Install in the reverse order | ||
| 8 | Perform basic setting with STAR Diagnosis |
