Adjust rear-axle toe - AR40.20-P-0261MB

MODEL 220 with CODE (979) Special protection version with CODE (Z07) Top protection

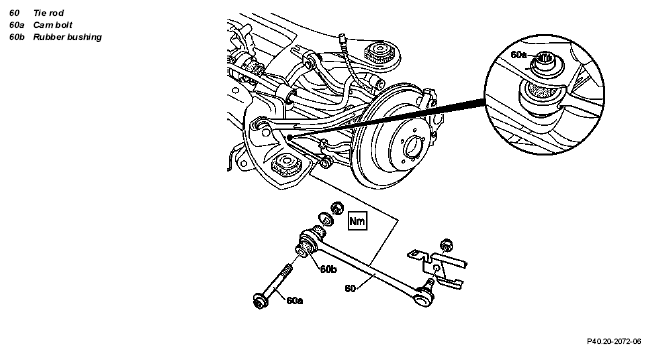

Fig 1: Identifying Tie Rod, Cam Bolt And Rubber Bushing - Shown On Model 220

Eccentric rubber mount

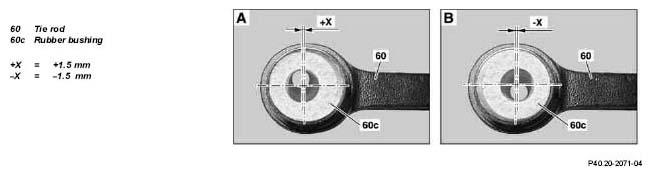

Fig 2: Identifying Eccentric Rubber Mount Components

	Adjust
1	Check vehicle level at front and rear axle with electronic inclination meter and adjust, if necessary		AR40.20-P-0301MB
2	Loosen nut of cam bolt (60a)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
3	Adjust toe with cam bolt (60a)	Total toe at vehicle level	*BE40.20-P-1001-10C
		Permissible difference in rear axle toe between right and left sides of the vehicle	*BE40.20-P-1002-10C
		In the event of the test values not being achieved the standard rubber mount (60b) can be replaced by an eccentric rubber mount (60c). The offset of 1.5 mm makes it possible to decrease the toe-in by 15" (Fig. A) or to increase the toe-in by 15" (Fig. B): ↓
		Remove/install track rod and replacement of rubber mount	AR35.20-P-0112I
4	Tighten nut of cam bolt (60a)		*BA35.20-P-1001-04A

INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number	Designation			Model 220 with code Z07
BE40.20-P-1001-10C	Total toe at vehicle level	-0.9°	∠°	0° 38'(± 14')
		-1,4°	∠°	0° 40'(±14')
		-1,9°	∠°	0° 41'(±14')
		-2,4°	∠°	0° 43'(±14')
		-2.9°	∠°	0° 44'(±14')
BE40.20-P-1002-10C	Permissible difference in rear axle toe between right and left sides of the vehicle		∠°	30'

TIE ROD

Number	Designation			Model 220
BA35.20-P-1001-04A	Self-locking nut, track rod to rear axle carrier	Stage 1	Nm	70
BA35.20-P-1001-04A	Self-locking nut, track rod to rear axle carrier	Stage 2	∠°	-
