Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301MB

MODEL 220 with CODE (979) Special protection version with CODE (Z07) Top protection

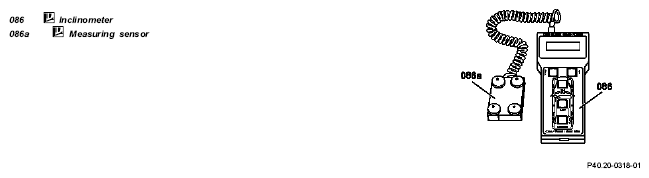

Fig 1: Identifying Inclination Meter, Measurement Sensor

Measurement point 1 (right front) illustrated

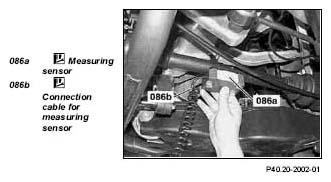

Fig 2: Identifying Measuring Sensor And Connection Cable For Measuring Sensor - Measurement Point 1 (Right Front)

Illustration shows measuring point 3 (left rear)

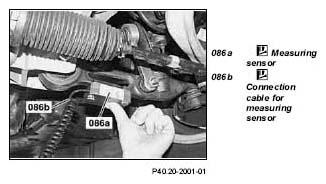

Fig 3: Identifying Measuring Sensor And Connection Cable For Measuring Sensor - Measurement Point 1 (Left Rear)

	Checking
1	Carry out preconditions and tests for vehicle level measurement		AR40.00-P-0202A
2	Clean measuring points	This prevents any measuring errors.
3	Mount measuring sensor (086a) on spring link between the cast-in humps and read off the vehicle level on the inclinometer (86)	The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect. Measure vehicle level at Measuring point 1 (left front) and measuring point 2 (right front) and store measured values.
		Vehicle level - front axle	*BE40.20-P-1001-02J
		Electronic inclinometer (CM 9606)	*WE58.40-Z-1002-15A
4	Mount measuring sensor (086a) on rear axle shaft and read off vehicle level on the inclinometer (86)	The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect. Measure vehicle level at Measuring point 3 (left rear) and measuring point 4 (right rear) and store measured values.
		Vehicle level - rear axle	*BE40.20-P-1001-03J
		Electronic inclinometer (CM 9606)	*WE58.40-Z-1002-15A
5	Check the maximum permissible difference in vehicle level between the left and right side of the vehicle	The specified test tolerance applies only when checking the vehicle level but not for calibration.
		Permissible difference in vehicle level between right and left sides of the vehicle	*BE40.20-P-1002-02J
		Permissible difference in vehicle level between right and left sides of the vehicle	*BE40.20-P-1002-03J
6.1	Use STAR DIAGNOSIS to calibrate vehicle level	Only if the vehicle level is outside the test tolerance.
	Connect STAR DIAGNOSIS and read out fault		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
		Permissible difference in vehicle level between right and left sides of the vehicle	*BE40.20-P-1002-02J
		Permissible difference in vehicle level between right and left sides of the vehicle Do not adjust the vehicle level using the level sensor control rod. Possible causes and remedies when the vehicle level is not OK after calibration: Attachment of level sensor is deformed. a Connecting rod to torsion bar, spring a control arm or wishbone has incorrect length. Attachment of connecting rod at torsion a bar, spring control arm or wishbone is loose or bent.	*BE40.20-P-1002-03J
7.1	Adjust headlamps	Only when vehicle level has been adjusted.
	Check and correct headlamp adjustment		AP82.10-P-8260M
