Tire pressure monitor control unit, location / task / design - GF40.15-P-3001B
MODEL 215, 220 with CODE (475) Tire pressure indicator

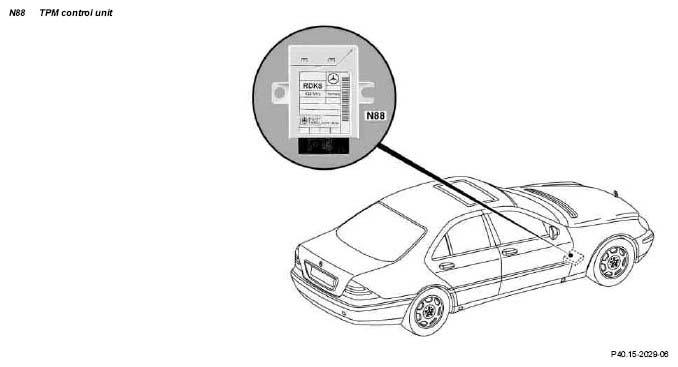

| Tire pressure monitor control unit, location | The TPM [RDK] control unit (N88) is located in the footwell on the front passenger side. | ||
| Tire pressure monitor control unit, task | up to 30.9.00 | GF40.15-P-3000-03B | |
| as of 1.10.00 up to 31.8.02 | GF40.15-P-3000-03C | ||
| as of 1.9.02 | GF40.15-P-3000-03D | ||
| Tire pressure monitor control unit, design | The TPM [RDK] control unit (N88) consists of a two-way radio receiver module, a control unit circuit board with microprocessor control and an interface for the data bus. |
