TPM control module, task - GF40.15-P-3000-03B
Model 215, 220 up to 30.09.00
Function
The tire temperature is taken into account when comparing the current tire pressure with the saved specified value. The TPM control module (N88) calculates the valid limits for the current tire temperature.
If the pressure drops below these limits, the TPC (RDK) control module (N88) sends an appropriate CAN signal to the instrument cluster (A1) according to the pressure deviation. This CAN signal is processed in the instrument cluster (A1) and the corresponding information conveyed to the driver via the multifunction display (A1p13) (display color: yellow or red).
Output signals
- Diagnosis line (K-line)
Input signals
- Left front TPM wheel antenna (A2/44)
- Left right TPM wheel antenna (A2/45)
- Left rear TPM wheel antenna (A2/46)
- Right rear TPM wheel antenna (A2/47)
- Terminal 30 power supply
- Power supply, terminal 15
- Input signal of TPM activation pushbutton (S107)

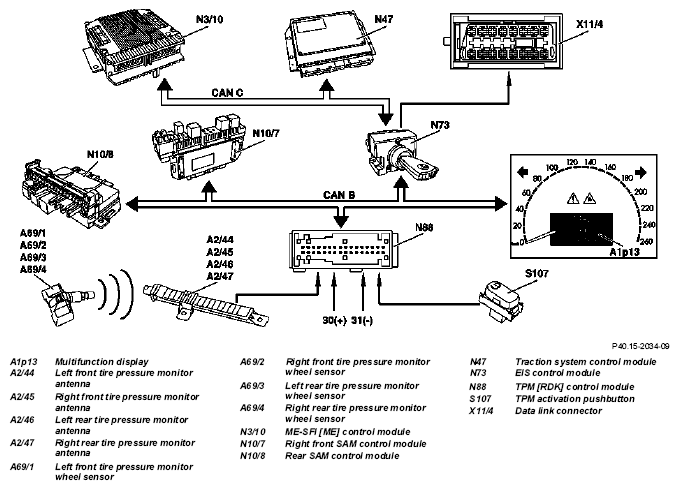

The engine compartment bus provides links to
- the instrument cluster (A1) with multifunction display (A1e13)
- ME-SFI [ME] control module (N3/10)
- Right front SAM control module (N10/7)
- Rear SAM control module (N10/8)
- Traction system control module (N47)
- for EIS control module (N73)
