Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130I: Notes

MODEL 215, 220

Shown on model 220 with AIRmatic and screwed rear axle shaft

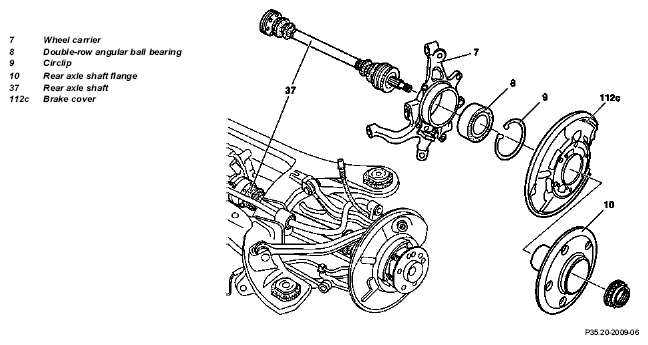

Fig 1: Identifying Rear Axle Shaft Flange And Angular Ball Bearing Remove/Install Components - Shown On Model 220

	Remove/Install
Danger!	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
1	Remove twelve-point collar nut from rear axle shaft (37)		AR35.30-P-0115-01A
2	Raise vehicle with lifting platform
3	Remove rear wheel
	Remove and install wheels		AP40.10-P-4050Z
4	Detach brake caliper with brake pads from rear axle	To relieve the strain on the brake hose, fasten the brake caliper onto the vehicle free of tension so that it is not damaged during repair work. The brake hose must not be disconnected from the brake caliper during the repair work.	AR42.10-P-0080I
5	Detach rear brake cable from automatic cable slack adjuster of parking brake	See ↓
		Remove rear brake cable.	AR42.20-P-0525I
6	Remove brake disc		AR42.10-P-0220I
7	Remove parking brake shoes	Model 215 except 215.379, 220 except 220.179	AR42.20-P-0530I
		Models 215.379 and 220.179	AR42.20-P-0530IM
8	Remove rear axle shaft (37)	Model 215, 220 with screwed rear axle shaft	AR35.30-P-0620I
		Model 215, 220 with plug-in rear axle shaft	AR35.30-P-0620IM
9	Pull out rear axle shaft flange (10) (wheel carrier installed)	Hydraulic extractor tool: Only tighten pressure screw of hydraulic auxiliary press to max. 40 Nm. If the rear axle shaft flange (10) is too tight to be extracted with a force of 40 Nm, the wheel carrier (7) must be removed and a stationary press used: ↓ Remove wheel carrier (7):	AR35.20-P-0130-01B
		Model 215, 220 except 220.8 and special protection, top protection or light armoring	AR35.20-P-0115I
		Model 220 with special protection code 979, top protection code Z07 or light armoring code Z04	AR35.20-P-0115MB
		Model 220.8	AR35.20-P-0115MP
		Extract seized rear axle shaft flange (10) (wheel carrier removed).	AR35.20-P-0130-04GH
		Extractor tool	Figure
		Extraction and insertion tool	Figure
10	Check brake cover (112c) for damage and replace if necessary
11	Remove retaining ring (9)	Installation:  Ensure that circlip (9) is properly seated in wheel carrier (7).
		Retaining ring pliers	*WH58.30-Z-1009-02A
12	Pull double-row angular ball bearing (8) out of wheel carrier (7)		AR35.20-P-0130-03A
		Extraction and insertion tool	Figure
13	Pull bearing inner race off rear axle shaft flange (10)		AR35.20-P-0130-02A
		Thrust piece	Figure
		Puller	Figure
		Clamping pliers	Figure
	Check
14	Check lateral and radial runout of rear axle shaft flange (10)	Permissible lateral runout of rear axle shaft flange when removed	*BE35.20-P-1001-01A
		Permitted vertical runout of rear-axle shaft flange at centering when removed If the test values are not attained, it may be necessary to replace the rear axle shaft flange.	*BE35.20-P-1002-01A
15	Install in the reverse order

TEST VALUES FOR REAR-AXLE HALFSHAFT FLANGE

Number	Designation		Model 215	Model 220
BE35.20-P-1001-01A	Permissible lateral runout of rear axle shaft flange when removed	mm	0.03	0.03
BE35.20-P-1002-01A	Permitted vertical runout of rear-axle shaft flange at centering when removed	mm	0.03	0.03

Fig 2: Identifying Extraction Tool (202 589 04 43 00)

Fig 3: Identifying Extraction And Installation Tool (140 589 08 43 00)

Fig 4: Identifying Thrust Piece (124 589 02 34 00)

Fig 5: Identifying Clamping Pliers (140 589 01 34 00)

Fig 6: Identifying Puller (001 589 50 33 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1009-02A	Pliers for circlip, inner
