Removing and installing inside backrest fitting - AR91.12-P-1733B

MODEL 210.2

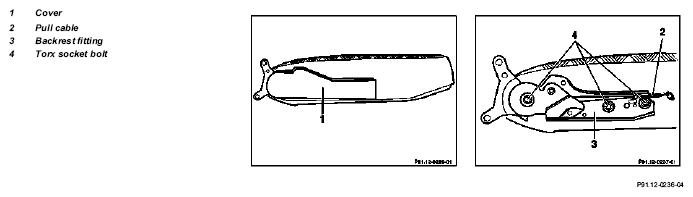

Fig 1: Identifying Inside Backrest Fitting Components - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove rear seat backrest		AR91.12-P-1700FA
2	Unclip cover (1)
3	Separate pull cable (2) at adjustment nut and counter nut	Installation:  Arrest release lever in locked position. Screw union nut onto pull cable bolt thread until pull cable is slightly tensioned. Then screw union nut back one to two turns and arrest in this position with counter nut.
4	Unscrew Torx socket bolts (4)	Right rear seat backrest Torx T40 Left rear seat backrest Torx T50	Figure
5	Remove backrest fitting (3)
6	Reinstall in opposite order
